StraightLine 36”x70 Stackable Transfer Conveyor With Roll Away Unloading System Unit #1471

SN: #36700524873,874,875

Equipment as follows:

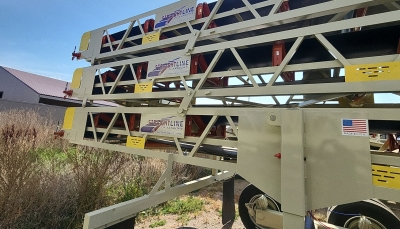

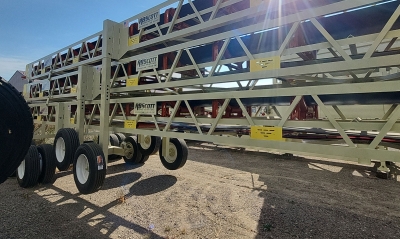

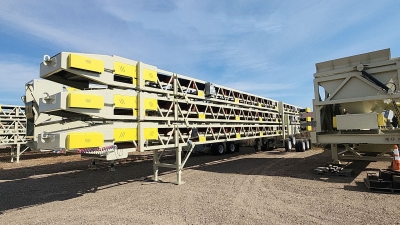

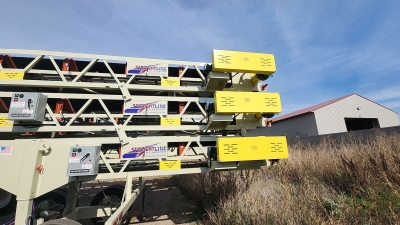

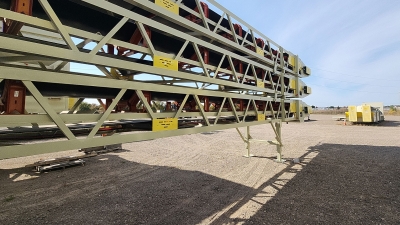

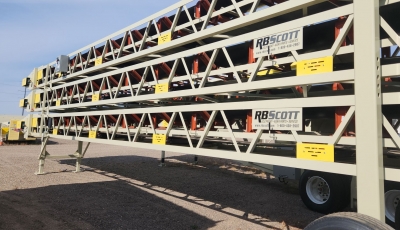

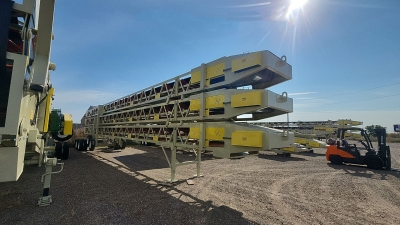

• 3 - 36 x 70' Transfer Conveyors - Designed to roll onto each other for one transportable system.

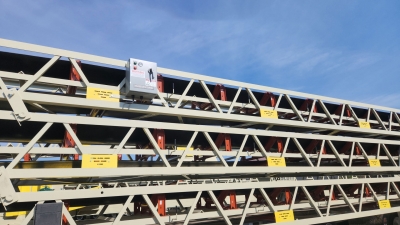

• Frame: 4x4x5/16" Angle - 2x2x1/4" Lattice - 3x3x3/16" Idler Mount
• 30" Deep Truss

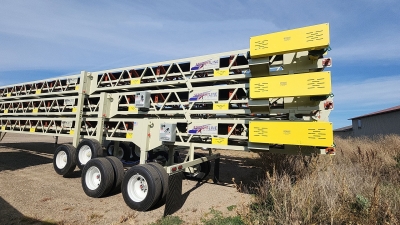

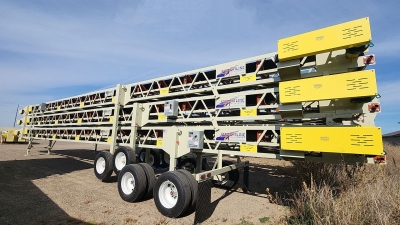

• Adjustable Height Transfer Undercarriages on Each

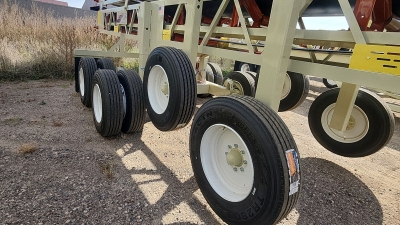

• Axle (Top & Middle Conveyor): 8 Bolt Hubs - Single 11.00-22.5 Tires
• Axle (Transport Conveyor): 10 Bolt Hubs - Dual 11.00-22.5 Tires

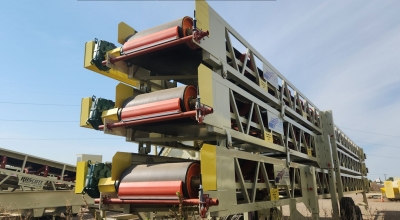

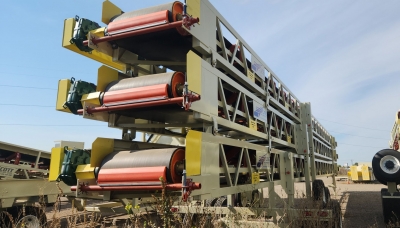

• Head Pulley: 16" x 38" C.F. - 3/8" HB Lagging - 3 7/16" Shaft
• Tail Pulley: 14" x 38" Wing Style - 2 15/16" Shaft
• Troughing Idlers: CEMA C - 5" Rollers @ 4' Centers
• Return Idlers: CEMA C - 5" Rollers @ 10' Centers + Nip Guards
• Gear Reducer: Master PT Size 5 with Backstop
• Motor: 20HP 1800 230/460/3PH Toshiba
• Electrical Switchgear/Cords from Panel to Motor Only/Not Interlocked
• Bearings: Dodge 2 Bolt Pillow Blocks
• Take-ups: Dodge Wide Slot
• 350FPM - 750TPH

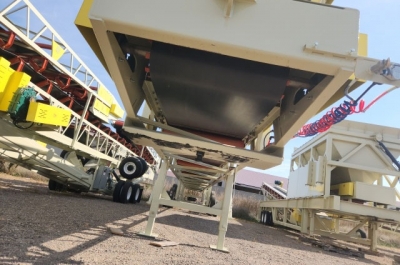

• 5' Receiving Hopper with Foldable Flared Hopper Sides
• Fifth Wheel Hitch + Tow Hook on each Conveyor
• Light Bar & Brakes Package
• Conveyor Belt 36" 3 Ply - 3/16" x 1/16" Cover
• Specifications
• Belt Splice - Flexco Mechanical Steel Fastners
• 36" Superior Belt Scraper
• Guarding: Tail Pulley, V Belts, Return Guards, Hopper
• Sandblasted, Urethane Primed, and Urethane Painted
