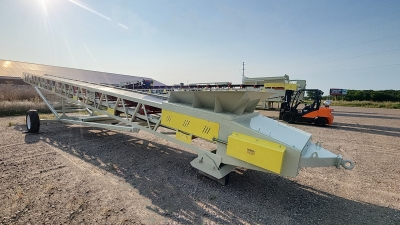

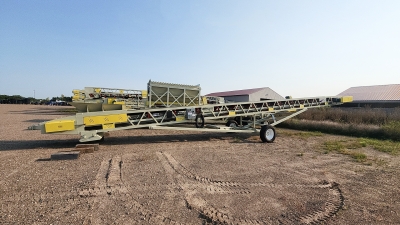

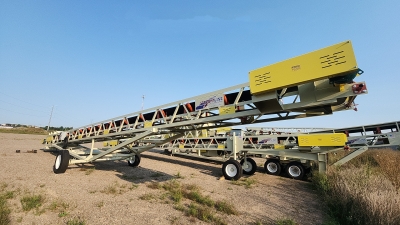

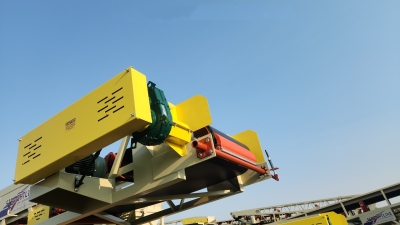

Straightline 36x60 Portable Radial Stacking Conveyor Unit #1461

SN: #36600524877

Equipment As Follows:

Frame: 3x3x1/4" Main Angle Chords + 2x2x3/16" Angle Lattice

30" Deep Truss

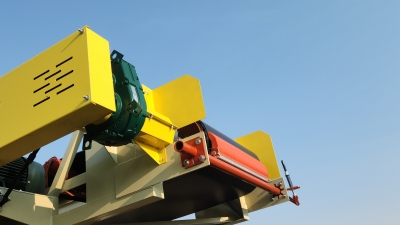

Motor: 20HP 460/230/3PH

Reducer: Master PT Size 5 with Backstop

Straight Line of Sanborn RB Scott

Bearings: Dodge SCM

Take Ups: Wide Slot

Head Pulley: 14" x 38" Drum with 3/8" HB Lag

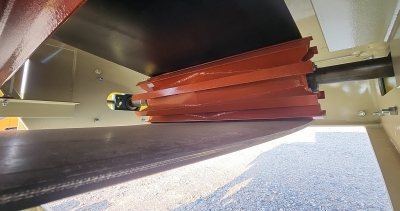

Tail Pulley: 14: x 38" Wing Style

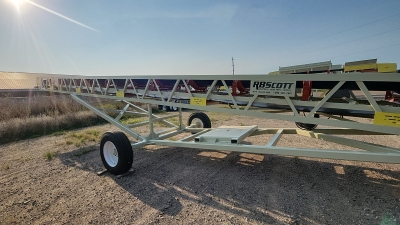

Axle: 8 Bolt Hub with 11Rx22.0 Tires + Swivel Plates for Radial Travel

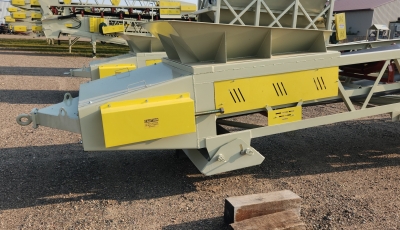

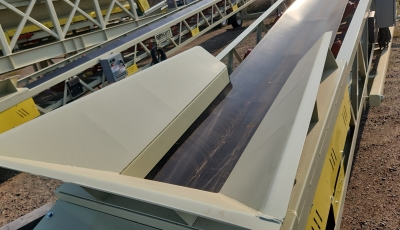

5' Hopper with Flared Receiving Hopper

5th Wheel Plate with Pivot Plate

Superior Belt Cleaner

Guarding: Tail Pulley, V Belts, Return Guards, Hopper

Sandblasted, Urethane Primed, and Urethane Painted
