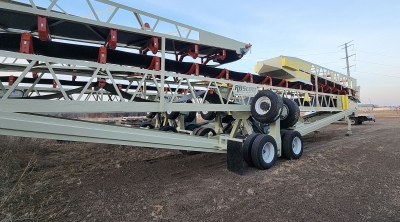

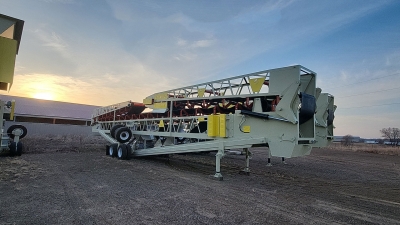

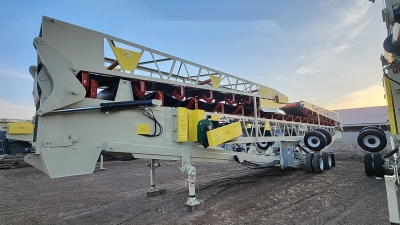

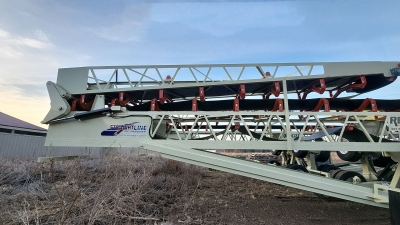

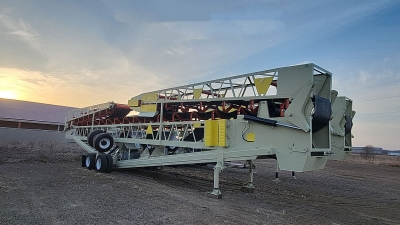

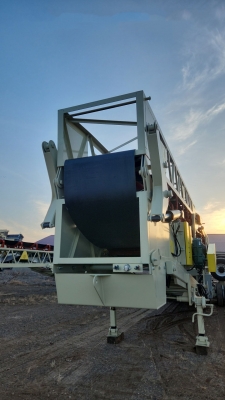

Straightline 42x137 Portable Radial Stacking Conveyor Unit #1515

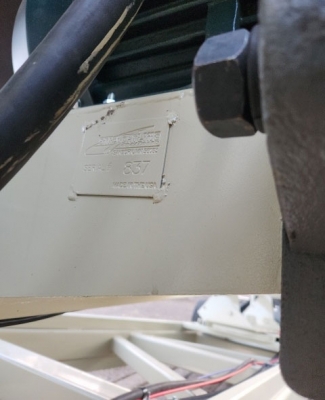

SN: #421370324837

Equipment As Follows:

• Frame: Tail section 4 x 4 x 5/16 chord angles, 2 x 2 x 1/4 angle lattice, Mid & Head section 4 x 4 x 5/16 chord angles, 2 x 2 x ¼ angle lattice members with 5 x 3 x 5/16 angle for bottom extra cord

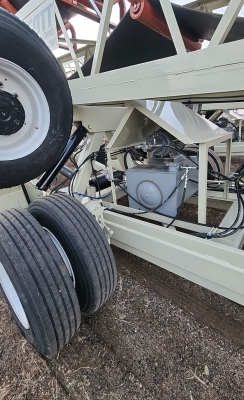

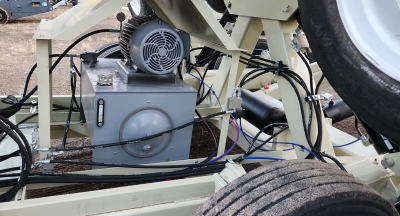

• Electrical15Hp hydraulic power unit / manual spool valves

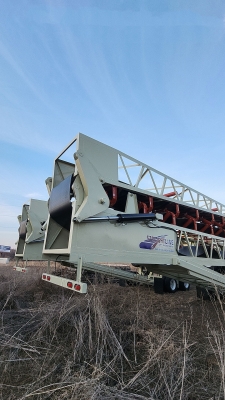

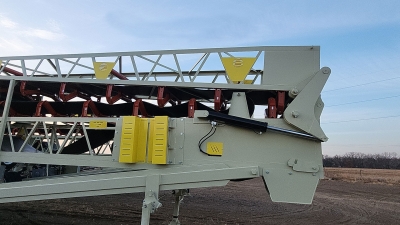

• Hydra-fold on head and tail section
• Hydraulic adjustable height undercarriage
• SLI Fold Down series axles (Hydraulic powered)

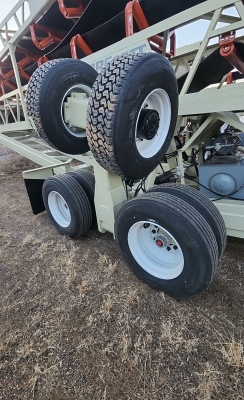

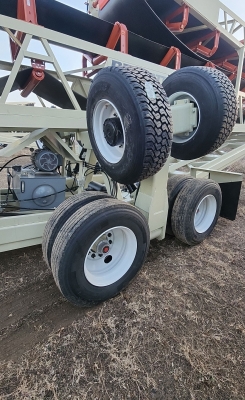

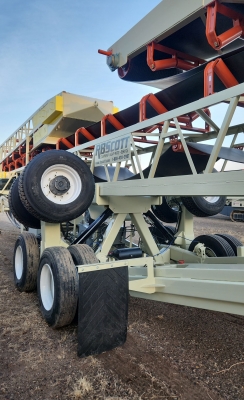

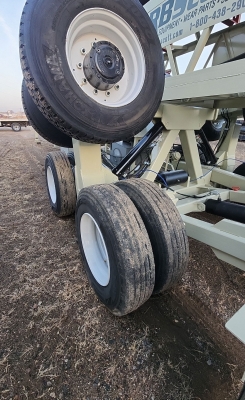

• (4) 385/65R-22.5 tires on out rigger
• (4) 2hp Planetary drives for radial travel

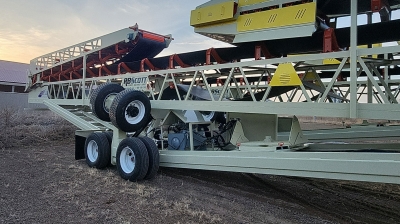

• Tandem Axle with – (8) 11.00R /22.5 tires

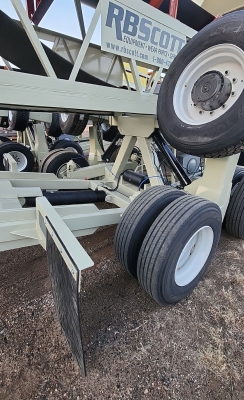

• Air Brake package, light package, Mud Flaps
• 24” x 44” Drive pulley with Ceramic lagging – 4 7/16” shaft

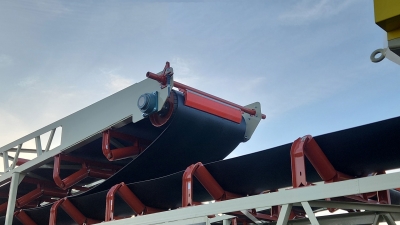

• 16” x 44” Head pulley - 3-15/16” shaft
• 24” x 44” Wrap pulley - 3-15/16” shaft
• 16” x 44” Tail wing pulley – 3-15/16” shaft
• CEMA C – Troughing idlers 5” rollers on 4’ centers
• CEMA C - Return idlers 5” rollers on 10’ centers

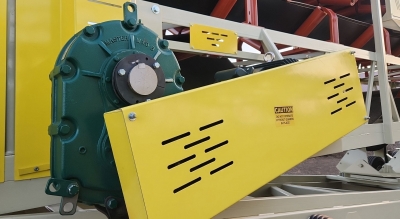

• Gear Reducer: Master PT size 8 with backstop
• Motor: 75hp 1800 230/460/3ph (single drive only)

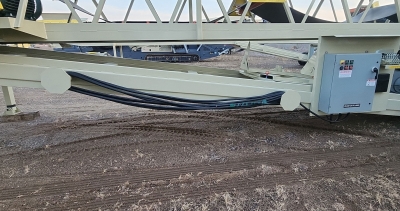

• Electrical cord wrap hooks
• Electrical panel
• Bearings: Dodge S2000
• Take-ups: Top Angle
• Conveyor belt: 42”- 3 ply 3/16 x 1/16” cover
• 1140TPH / 400FPM
• 5’ receiving hopper with extra idlers at load point
• Heavy duty landing gear
• Fifth wheel hitch and tow eye
• Pivot plate
• Belt Cleaner: By Superior Exterra
• Guarding: Tail pulley and V-belts
• Sandblasted: Frame
• (1) Coat primer urethane (1) Coat finished urethane
