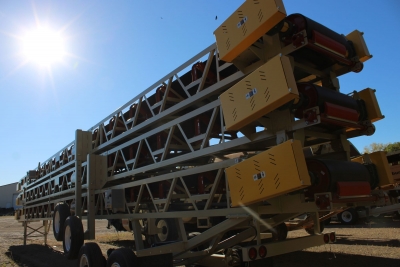

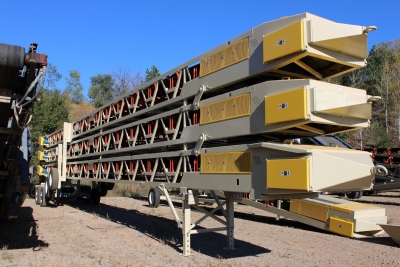

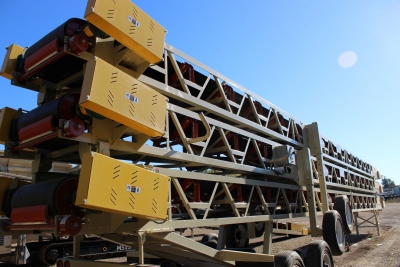

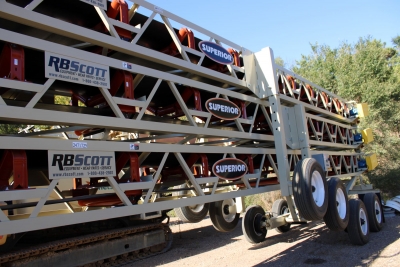

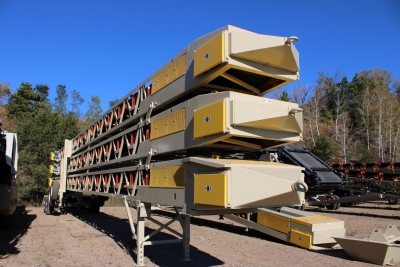

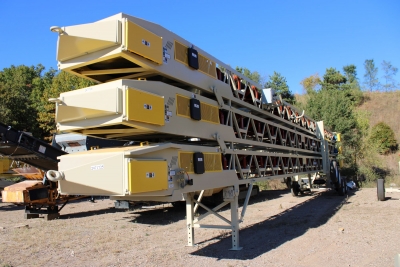

Superior 36x70 Slide-Pac System Unit #1480
SN: #2471725
Equipment As Follows:
Conveyor Frame - No top cross lattices
Trailer Unit (TRL)
Main Frame-30" deep truss
Chord Angles-4" x 4" x 5/16"
Lattice Members-2" x 2" x 3/16"
Middle unit (TRL) and Top unit (TOP)-
Main Frame-30" deep truss
Chord Angles-4" x 4" x 5/16"
Lattice Members-2" x 2" x 3/16"
Roller Assembly-Single set on head end for easy loading and unloading
Containerized-not included
Drive Specifications
Drives-Class I head drive
Gear Reducers-Shaft Mount
Backstops-installed in reducer
Motors-20 HP TEFC
V-Belt Drive-with drive guard
Capacity-750 STPH of 100 PCF material, 25° surcharge (90% fines, 10% spherical lumps, 6" minus)
Belt Speed-400 fpm
Drive Pulley-16" diameter, 3/8" herringbone lagged drum
Tail Pulley-14" diameter, CEMA Chevron® wing
Shafts-Turned and Polished
Bearings-Included
Take-up-Screw type
Portability
Conveyor Splice-one piece frame
Towing Eye-pintle hitch type
Trailer Unit (TRL)

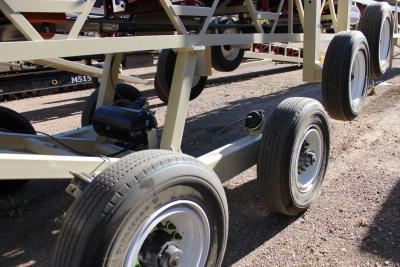

TRL V type axle-7' 4" fixed discharge height, fixed width axle, non-swiveling single 11R-22.5 wheels and tires
Support Legs-Adjustable height folding legs
Fifth wheels-Fifth wheel hitch
Brakes-complete air brake package
Lights-brake and directional signals
Mud Flaps-installed behind transport wheels
Middle Unit (MID)-
MID Strut Axle-10' 6" adjustable height, non-swiveling single 11R-22.5 Ag wheels and tires
Top Unit (TOP)--
TOP Strut Axle-12' 3" adjustable discharge height, non-swiveling single 11R-22.5 Ag wheels and tires
Fold down legs-Not Included
Conveyor Components
Belting-3-ply 3/16 x 1/16 330PIW
Belt Splice-Flexco mechanical steel fasteners
Scrapers-Superior Exterra® Primary Belt Scraper

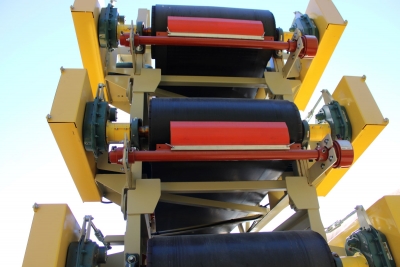

Idlers-CEMA C, 5" dia. sealed for life ball bearings
Mounting-Recessed inside frame
Idler Seal-Superior Standard SpinGuard® Seal
Load Area-20° trough, steel rolls, 12-16" spacing
Trough-35° trough, steel rolls, on 4' spacing
Returns-flat steel rolls on 12' spacing
Skirting Extension-5' long, 10" high, hinged, with 1" round bar for material shelf
Gathering Trough-5' long with adjustable rubber flashing
Additional Specifications

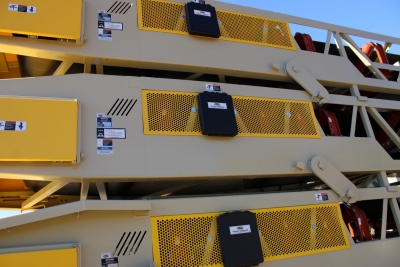

Guarding-For drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected
Voltage-480 V / 3 PH / 60 Hz - 1800RPM
Cord Holders-not included
Control Panel Plate-bracket only for panel

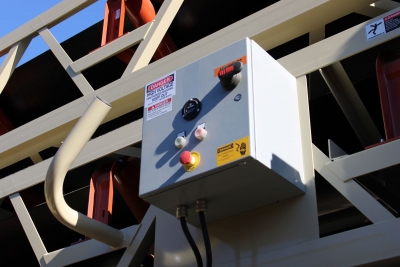

Control Panel-control panel and wiring included for on board motors
Hourmeter-Analog hourmeter included on door of panel-
Paint-1 coat primer, 1 coat finish enamel, Superior Beige (12-00619)
Guard Paint-Yellow
Idler Paint-Powder coated Superior Orange
Owner's Manual-(1) copy in English included for operation and maintenance

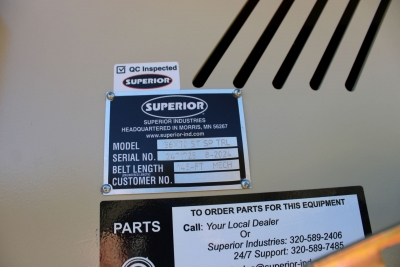

Sign Plate-RB Scott sign plate installed
