Superior 36x60 Stackable Plus Conveyor with Bend Unit #1470
SN: #2465284
Equipment as follows:
Conveyor Frame
Main Frame - 8" channel
Uprights - 4" channel
Top Chord - 4" x 2" tubing
Containerized- not Included
Drive Specifications
Drive - Class I head end
Gear Reducer – Shaft Mount
Backstop - Installed in reducer
Motor - 20 HP TEFC
V-belt Drive - With drive guard
Capacity - 750 STPH of 100 PCF material, 25 degree surcharge (90% fines, 10% spherical lumps 6” minus),
Belt Speed - 400 fpm
Drive Pulley - 14” diameter, 3/8” herringbone lagged drum
Tail Pulley - 12” diameter, CEMA Chevron® wing
Shafts - Turned and polished
Bearings - Included
Take ups - Screw type
Portability
Conveyor Splice - One piece frame
Support - Not included
Tail Support - Not included
Stackable Plus - included

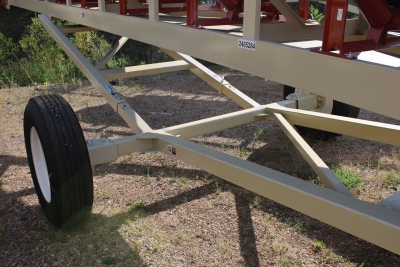

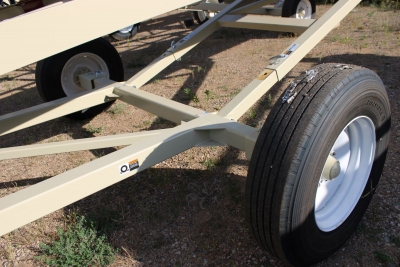

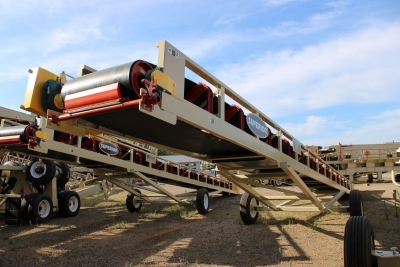

Undercarriage – Adjustable height with single swiveling 11R x 22.5 wheels and tires. 11’6” discharge height
Anchor Pivot - Maintains tail end during radial travel
Tow Eye - Pintle type hitch
Axle Jacks- Not included
Conveyor Components
Belting - 3-ply 3/16 x 1/16 330 PIW
Belt Splice – Flexco mechanical steel fasteners

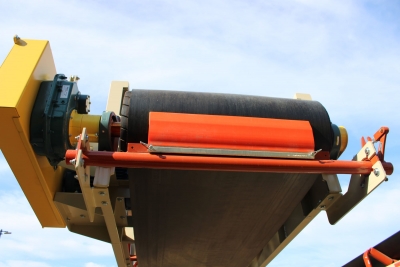

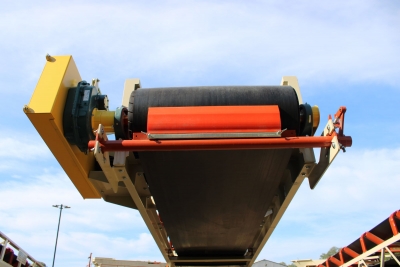

Scraper - Superior Exterra® Primary belt scraper

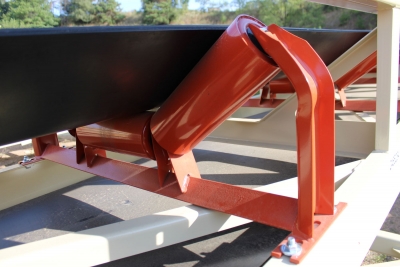

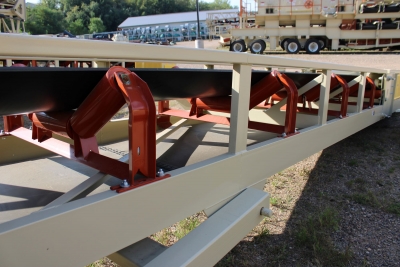

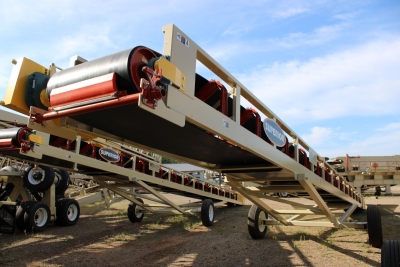

Idlers - CEMA C , 5” dia. sealed for life ball bearings
Load Area - 20° trough, 12-16" spacing

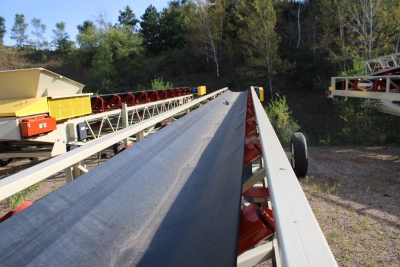

Trough - 35° trough, steel rolls, on 4’ spacing
Returns - 4” steel rolls, on 10' spacing

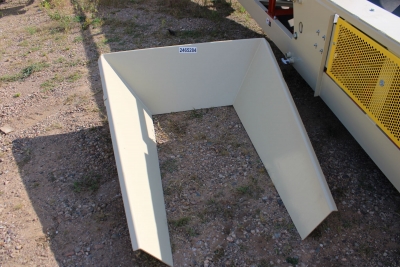

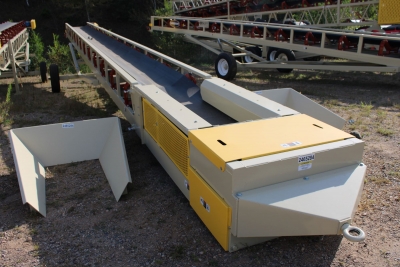

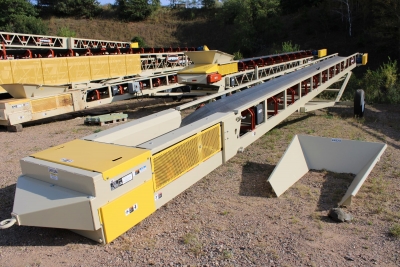

Radial Receiving Hopper - Sloped, 5' long, bolt on design
Gathering Trough - 5' long with adjustable rubber flashing
Additional Specifications

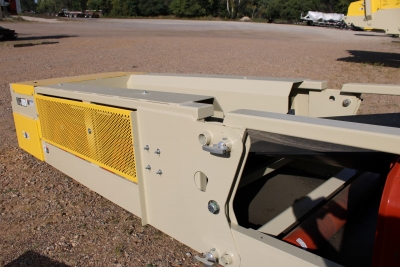

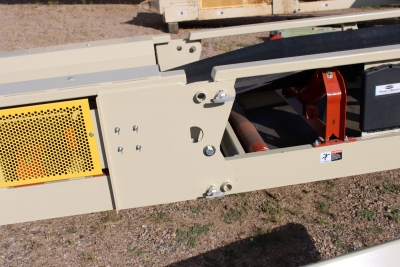

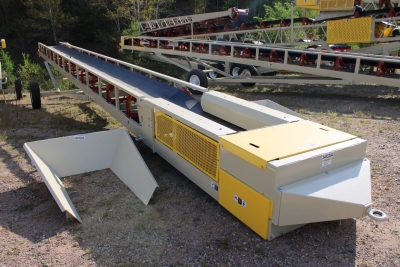

Guarding - For drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.
Voltage - 480 v / 3 PH / 60 Hz-1800RPM
Control Panel Plate- Not included
Control Panel-Control panel and wiring not included
Paint - 1 coat primer, 1 coat finish enamel Superior Beige
Guard Paint- Yellow
Idler Paint - Powder coated Superior Orange

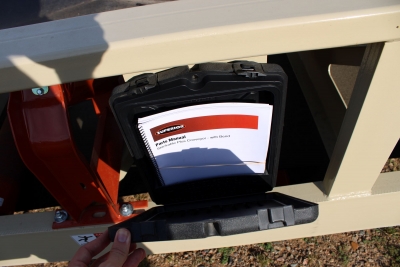

Owner’s Manual - (1) copy in English included for operation and maintenance

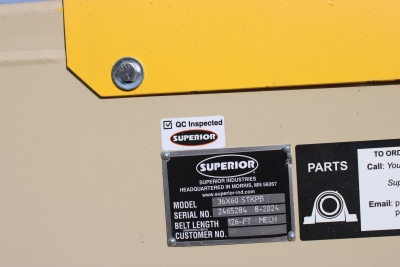

Single Plate- RB Scott sign plate installed
