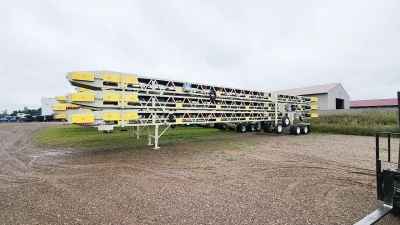

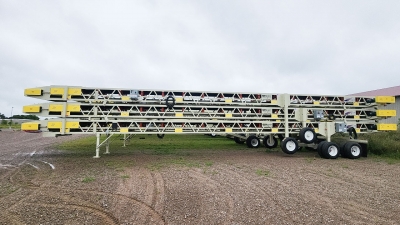

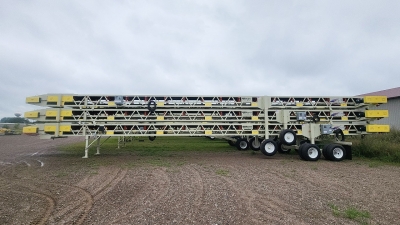

Straightline 36x70 Stackable Transfer Conveyor System Unit #1457

SN: #367004248474849

Equipment As Follows:

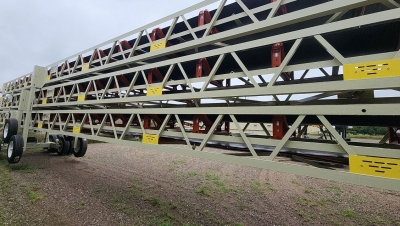

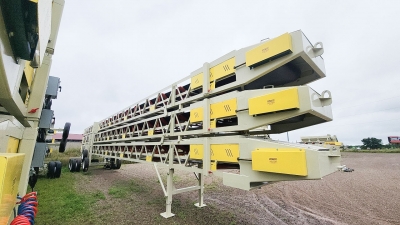

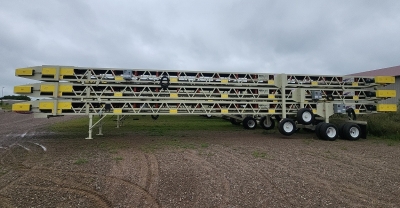

  • Two are designed to ride on the top of third conveyor for over road transport.

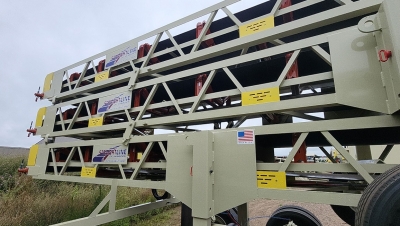

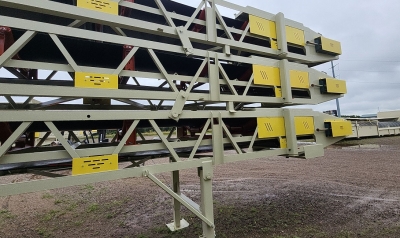

  • Frame on all three conveyors: 4 x 4 x 5/16” Chords with 2 x 2 x 1/4” Lattice members – with 3 x 3 x 3/16” angle recessed in frame for troughing idlers
  • Truss: 30” Deep
  • Adjustable height under carriage – manual pin adjustment
  • Note: Top conveyor to raise to 16ft

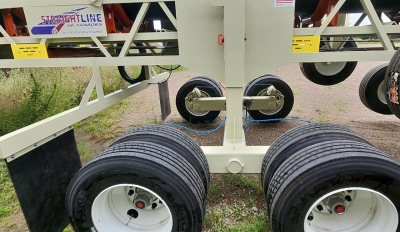

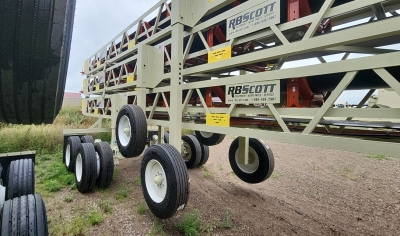

  • Axle: Single – 8 bolt hubs - single 11.00-22.5 tires (on top & middle conveyors)

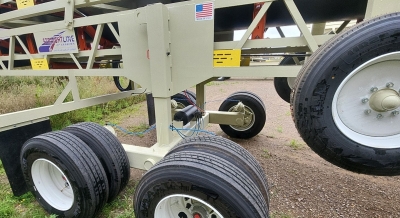

  • Axle: Tandem with duals – 10 bolt hubs – dual 11.00-22.5R tires (on transport conveyor)

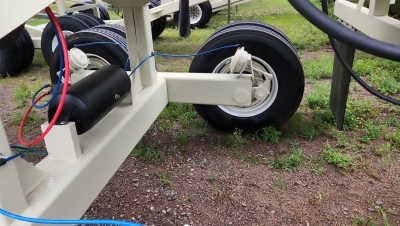

  • Air brakes and light package on transport conveyor
  • Head pulley: 16” x 38” C.F. – 3/8” H.B. lagging – 3 7/16” shaft
  • Tail pulley: 14” x 38” Wing style – 2-15/16” shaft
  • Troughing idlers: CEMA C – 5” rollers on 4’ centers
  • Return idlers: CEMA C – 5” rollers on 10’ centers
  • Return idler nip guards.
  • Gear Reducer: Master PT size 5 with backstop
  • Motor: 20HP 1800 230/460/3ph Toshiba
  • Electrical switch gear / Interlocking / Cord
  • 100ft of extra cord
  • Electrical cord hooks on one side
  • Bearings: Dodge 2 bolt pillow block 3 7/16” on head pulleys and 2 15/16” on tail pulleys
  • Take-ups: Dodge wide slot

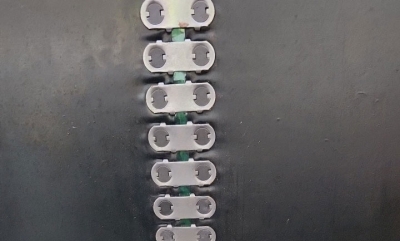

  • Conveyor belt: 36”- 3 ply 3/1 cover
  • 350FPM / 750TPH
  • Belt scraper: By Superior
  • 5’ receiving hopper with extra idlers at load point
  • Hitch: Fifth wheel and tow eye (on transport conveyor)
  • Guarding: Tail pulley and V-belts
  • Sandblasted: Frame (1) Coat urethane primer (1) Coat finished urethane
