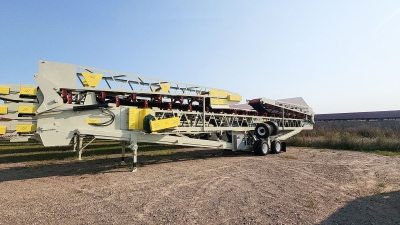

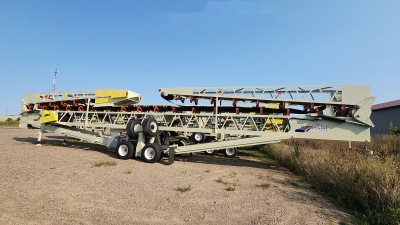

Straightline 36x137 Portable Radial Stacking Conveyor Unit #1462

SN: #361370324836

Equipment As Follows:

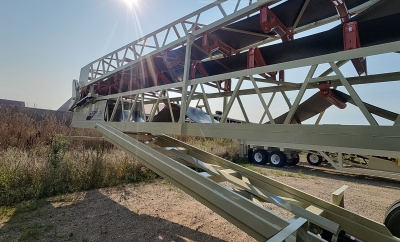

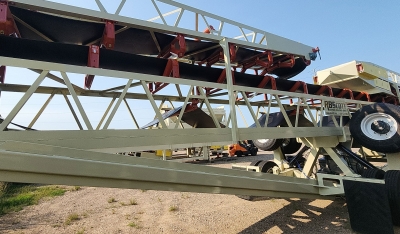

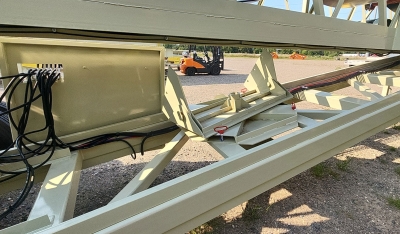

• Frame: Tail section 4 x 4 x 5/16 chord angles, 2 x 2 x 1/4 angle lattice, Mid & Head section 4 x 4 x ¼ chord angles, 2 x 2 x ¼ angle lattice members with 5 x 3 x 5/16 angle for bottom extra cord

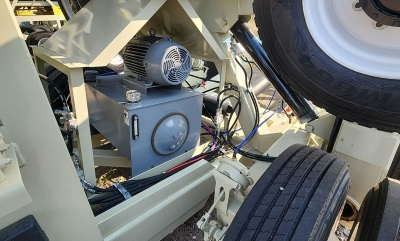

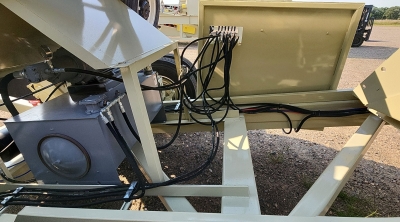

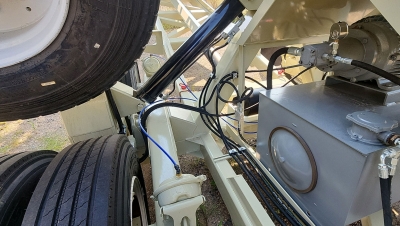

• Electrical 15hp hydraulic power unit / manual spool valves
• Hydra-fold on head and tail section
• Hydraulic adjustable height undercarriage
• SLI Fold Down series axle

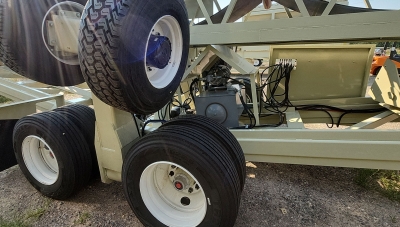

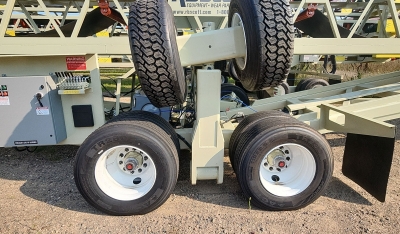

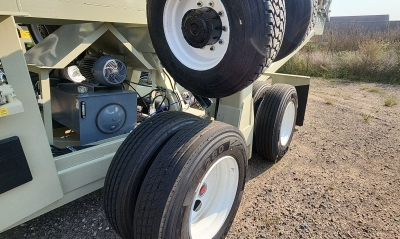

• (4) 385/65R-22.5 tires on out rigger
• (4) 2hp Planetary drives for radial travel

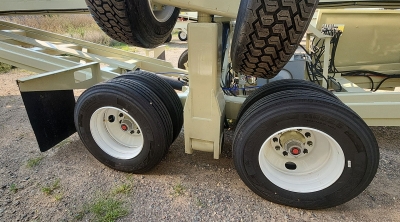

• Tandem Axle with – (8) 11.00R /22.5 tires
• Air Brake package, light package, mud flaps

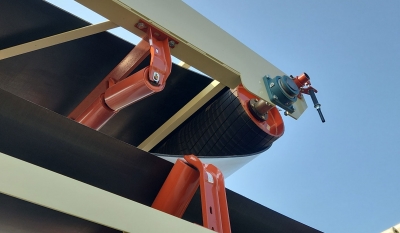

• 24” x 38” Drive pulley Ceramic lagging – 3 15/16” shaft
• 20” x 38” Wrap pulley wing – 3 7/16” shaft
• 16” x 38” Head pulley - 3-7/16” shaft
• 16” x 38” Tail wing pulley – 3-7/16” shaft

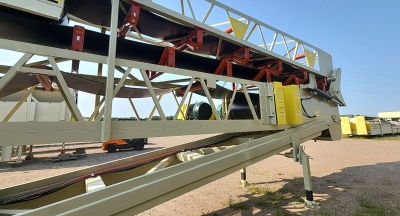

• CEMA C – Troughing idlers 5” rollers on 4’ centers
• CEMA C - Return idlers 5” rollers on 10’ centers
• Gear Reducer: Master PT size 8 with backstop
• Motor: 60hp 1800 230/460/3ph Toshiba (single drive only)
• Electrical cord wrap hooks

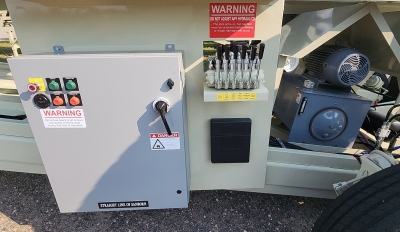

• Electrical panel
• Bearings: Dodge S2000
• Take-ups: Top Angle
• Conveyor belt: 36”- 3 ply 1/4” x 1/16” cover
• 980 TPH / 400 FPM
• Belt Splice: Flexco 140 fasteners
•  5’ radial receiving hopper with extra idlers at load point
• Heavy duty landing gear
• Fifth wheel hitch and tow eye
• Pivot plate
• Belt Cleaner: By Superior Exterra
• Guarding: Tail pulley and V-belts
• Sandblasted: Frame
• (1) Coat primer urethane (1) Coat finished urethane
