GreyHawk McLanahan Portable UFR Unit #1300

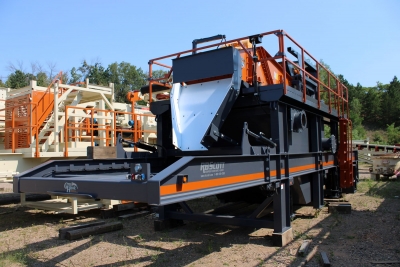

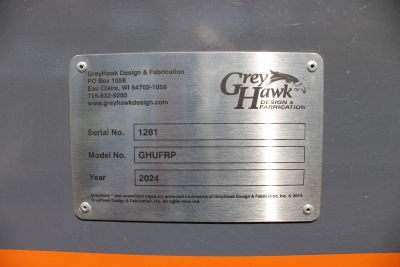

SN: #1281/20222328

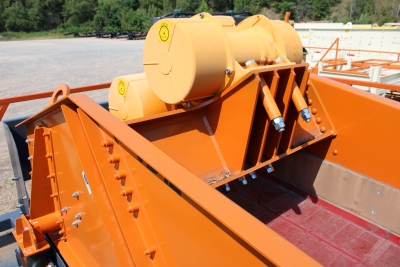

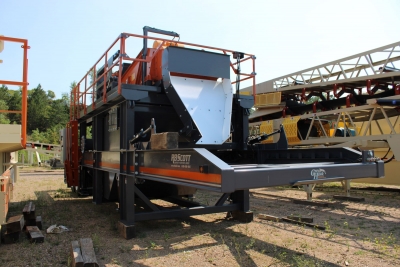

Equipment As Follows:MCLANAHAN DEWATERING SCREEN-MODEL VD-12 (4'x 10')

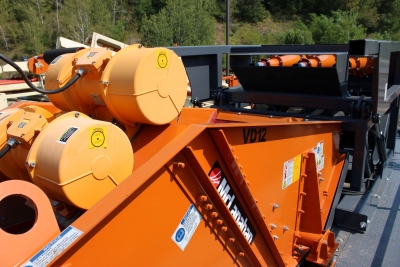

•Two 3.2HP vibratory motors
•Heat treated motor bridge
•Huck bolted construction
•Modular polyurethane screen media
•Rubber vibration isolation buffers
•Discharge Chute with ¼” UHMW liner

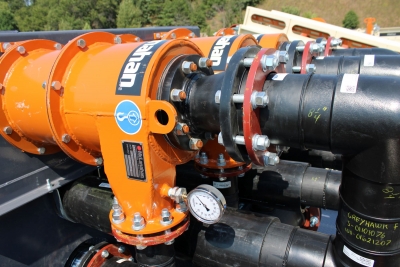

MCLANAHAN HYDROCYCLONES-QTY (3) MODEL HSE1210
•Fabricated steel with bonded rubber linings
•10 degree cone
•Feed Box extension
•Rubber lined vortex finder
•Apex with drop-in rubber liner
•Apex splash guard - reinforced rubber sleeve
•SDR-11 overflow pipe with flanges

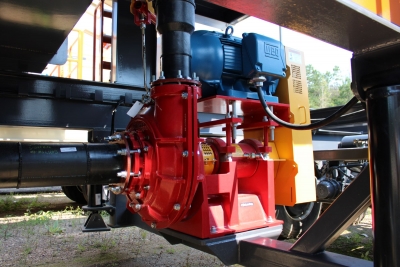

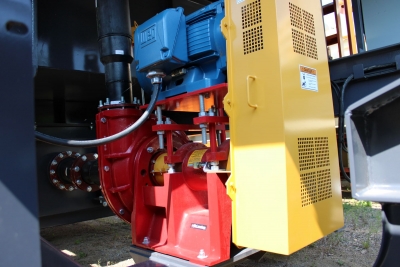

MCLANAHAN SLURRY PUMP
•8" x 6"
•Field replaceable molded rubber casing liners
•Molded rubber impeller with internal steel skeleton
•Type ‘D’ gland
•Grease lubricated bearings
•Overhead motor table

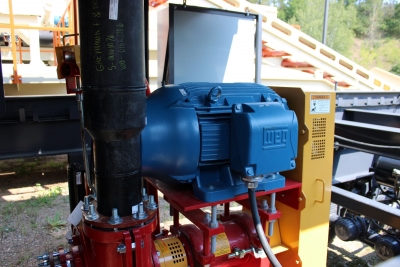

•100HP, 1800 RPM, 460 volt, 3-phase, 60 cycle, TEFC, inverter duty
•V-belt drive sheaves & belts
•Drive guard

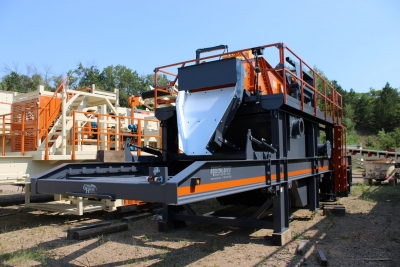

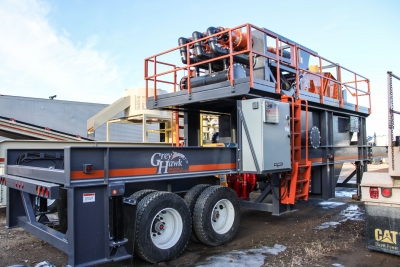

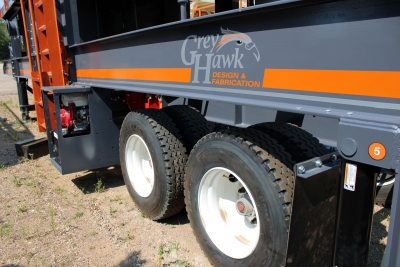

GREYHAWK CHASSIS:
1.MAIN CHASSIS
•Heavy duty mainframe
•Tandem axle Hutch spring suspension with 4’ axle spacing
•Qty 8 11-22.5 tires on hub piloted wheels
•Qty 6 blocking support legs
•2900-gallon slurry tank
oMade from ¼” plate
o10” inlet ANSI flange
o16” output ANSI flange
oSelf-balancing
•Fifth wheel Assembly with “Tilt-Away” feature to provide easy access for a loader to the sand stockpile.
•Slurry pump support frame
•Air controlled brakes
•Light bar
•Mud flaps
•Diamond Plate walkway on both sides of screen
•Walkways include handrail, center rail, and toe board
•Access ladders on both sides

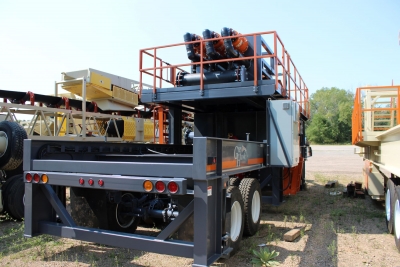

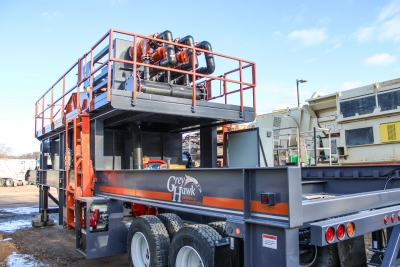

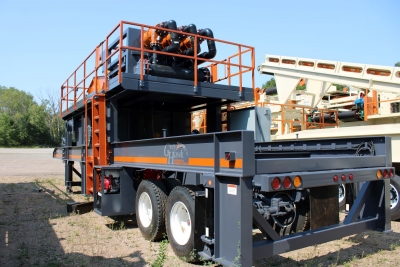

2.HYDROCYCLONE TOWER
•Fabricated steel structure
•Hydraulic fold
3.PIPING
•HDPE Pump suction
•HDPE Pump discharge
•Quick connect rubber hose between pump discharge and hydrocyclone manifold
•HDPE hydrocyclone inlet manifold
•HDPE hydrocyclone overflow pipes

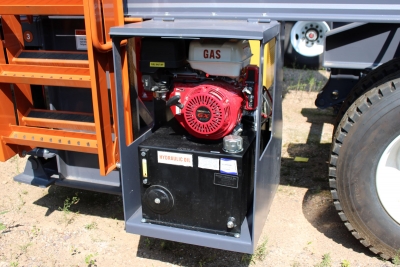

4.HYDRAULICS
•13HP Honda gasoline engine with electric start and backup recoil start

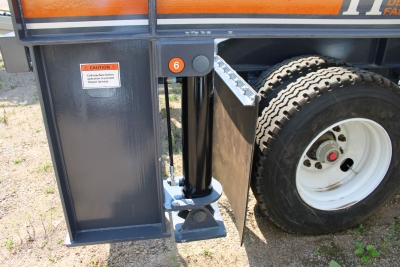

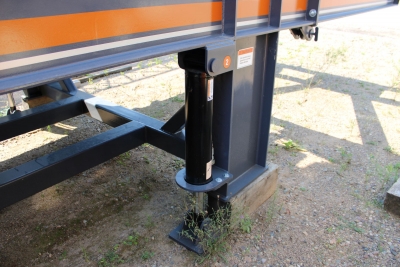

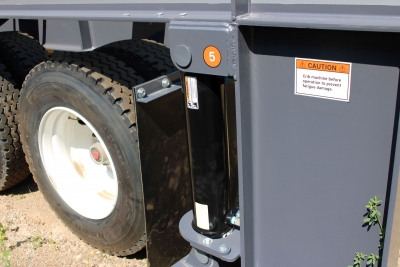

•(6) Hydraulic leveling cylinders

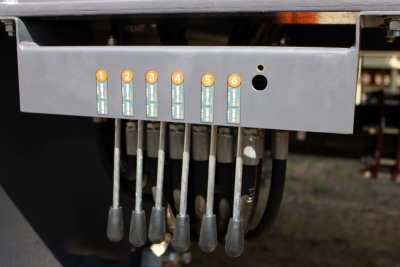

•Six bank valve body for independent control of each jackleg
•Single bank valve for kingpin fold
•Single bank valve for hydrocyclone tower fold

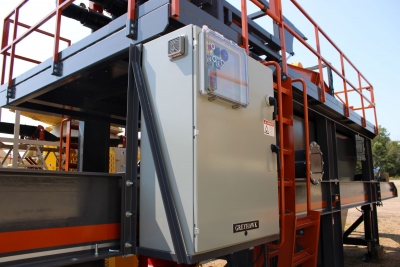

5.ELECTRICAL
•NEMA4 electrical enclosure
•Enclosure is rubber mounted to the chassis
•Door interlocked disconnect linkage
•Warning horn
•Circuit breakers
•NEMA rated starters
•Pump VFD-WEG
•Hour meter
•Wiring
•Pushbutton start/stop control
6.SAFETY/GUARDING
•We install all standard guarding, customer will be responsible for compliance with local codes.
7.GENERAL
•Paint
oSandblasted
oTwo-part epoxy primer
oTwo-part urethane topcoat
oColor-GH Grey
oDecals-Orange & grey striping
