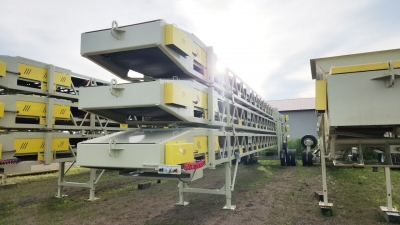

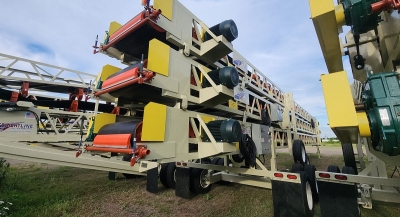

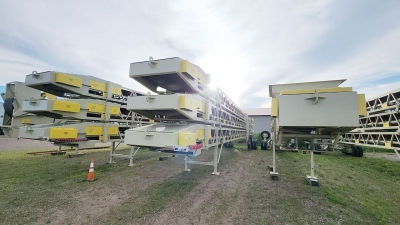

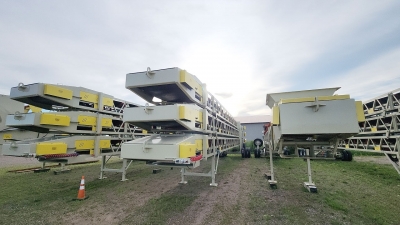

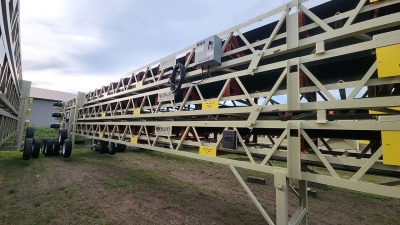

Straightline 42x70 3-Pack Stackable Transfer Conveyor Unit #1446

SN: #42700424853, 854, 855

Equipment As Follows:

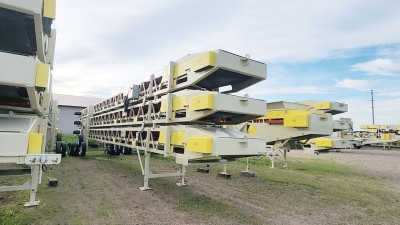

Two are designed to ride on the top of third conveyor for over road transport

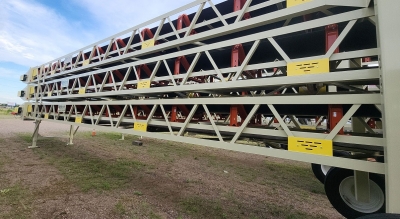

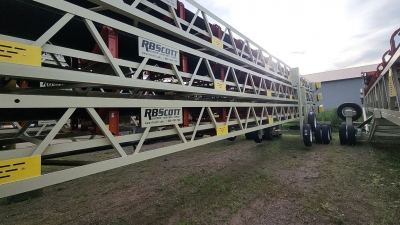

  • Conveyor Frames: 4 x 4 x 5/16” Chords with 2 x 2 x 1/4” Lattice members – with 3 x 3 x 3/16” angle recessed in frame for troughing idlers
  • Truss: 30” Deep
  • Adjustable height under carriage – manual pin adjustment
  • Adjustable stands on tail end

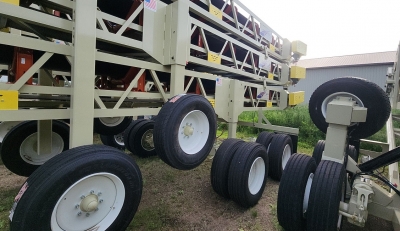

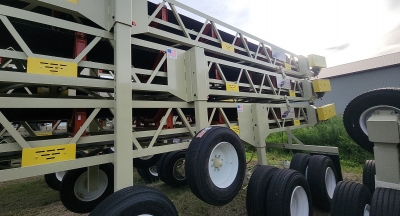

  • Axle: Single – 8 bolt hubs - single 11.00-22.5 tires (on middle & top conveyors)
  • Axle: Tandem with duals – 10 bolt hubs – dual 11.00-22.5R tires (on transport conveyor)
  • Air brakes and light package on transport conveyor
  • Extra channel lifting points
  • Head pulley: 16” x 44” C.F. – 3/8” H.B. lagging – 3 7/16” shaft
  • Tail pulley: 14” x 44” Wing style – 2-15/16” shaft
  • Troughing idlers: CEMA C – 5” rollers on 4’ centers
  • Return idlers: CEMA C – 5” rollers on 10’ centers
  • Return idler Nip Guards
  • Gear Reducer: Master PT size 6 with back stop
  • Motor: 30HP 1800 230/460/3ph Toshiba (motor mounted on opposite side of reducer)
  • Electrical switch gear – with Interlocking

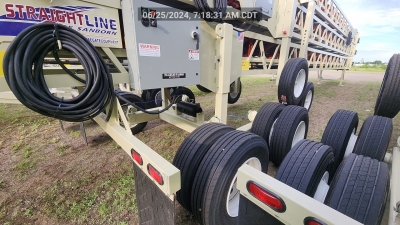

  • 100ft of extra cord
  • Electrical cord hooks on one side
  • Bearings: Dodge 2 bolt pillow block 3 7/16” on head pulleys and 2 15/16” on tail pulleys
  • Take-ups: Dodge wide slot
  • Conveyor belt: 42” 3ply 3/16” x 1/16”
  • 350FPM / 1100TPH
  • Belt scraper: By Superior Exterra
  • 5’ receiving hopper with extra idlers at load point
  • Hitch: Fifth wheel and tow eye (on transport conveyor
  • Guarding: Tail pulley and V-belts
  • Sandblasted: Frame (1) Coat urethane primer (1) Coat urethane finished
