Straightline 42x70 3-Pack Stackable Transfer Conveyor Unit #1420

SN: #42700424850, 851, 852

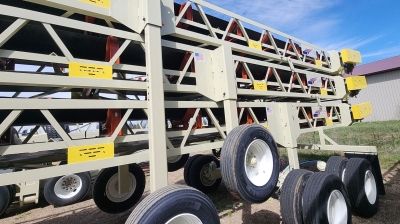

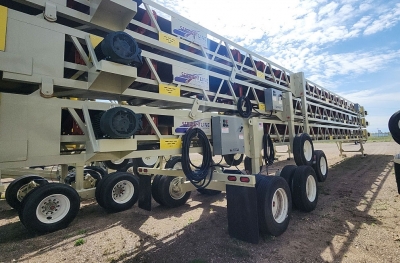

Equipment As Follows:

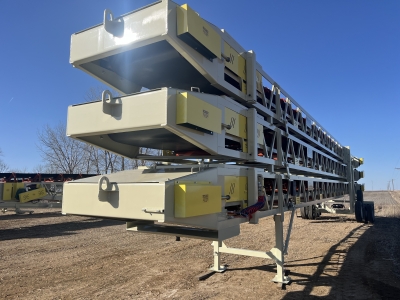

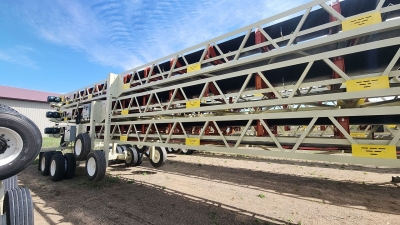

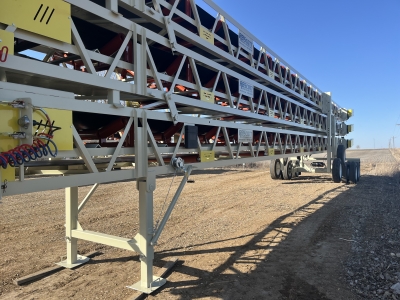

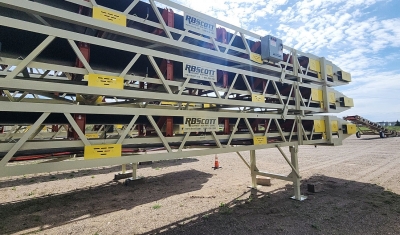

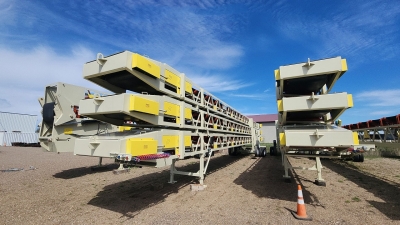

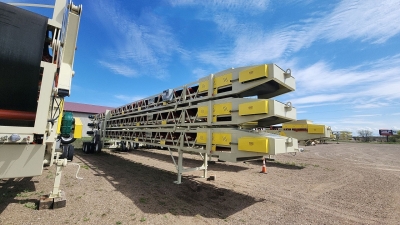

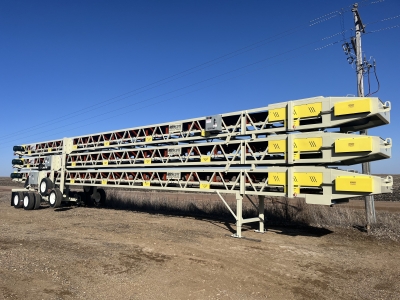

  Two are designed to ride on the top of third conveyor for over road transport

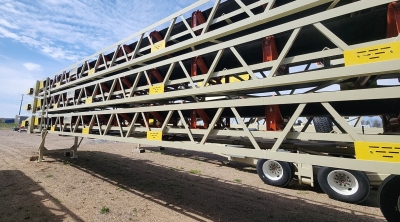

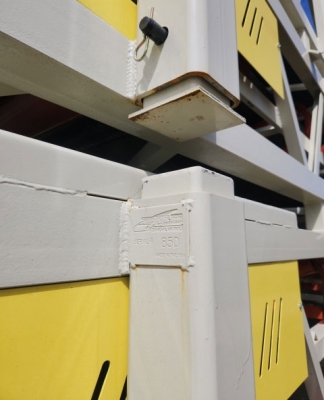

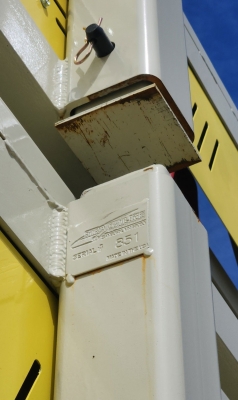

• Conveyor Frames: 4 x 4 x 5/16” Chords with 2 x 2 x 1/4” Lattice members – with 3 x 3 x 3/16” angle recessed in frame for troughing idlers
• Truss: 30” Deep
• Adjustable height under carriage – manual pin adjustment
• Adjustable stands on tail end

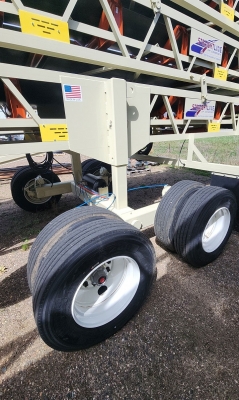

• Axle: Single – 8 bolt hubs - single 11.00-22.5 tires (on middle & top conveyors)
• Axle: Tandem with duals – 10 bolt hubs – dual 11.00-22.5R tires (on transport conveyor)
• Air brakes and light package on transport conveyor
• Extra channel lifting points
• Head pulley: 16” x 44” C.F. – 3/8” H.B. lagging – 3 7/16” shaft
• Tail pulley: 14” x 44” Wing style – 2-15/16” shaft
• Troughing idlers: CEMA C – 5” rollers on 4’ centers
• Return idlers: CEMA C – 5” rollers on 10’ centers

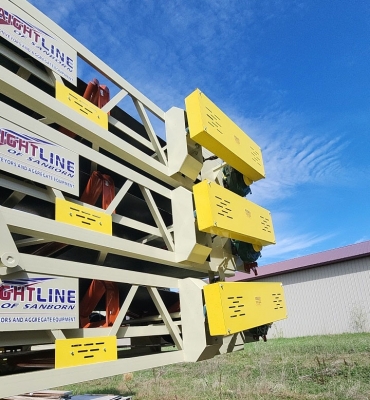

• Return idler Nip Guards
• Gear Reducer: Master PT size 6 with back stop

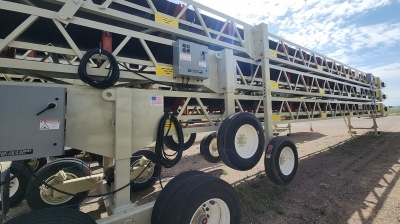

• Motor: 30HP 1800 230/460/3ph Toshiba (motor mounted on opposite side of reducer)

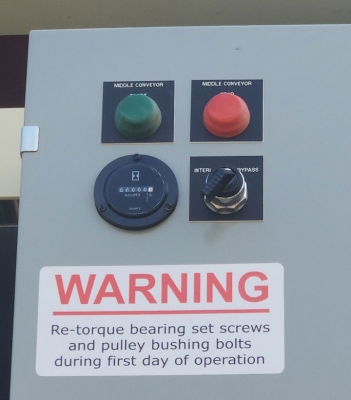

• Electrical switch gear – with Interlocking
• 100ft of extra cord
• Electrical cord hooks on one side
• Bearings: Dodge 2 bolt pillow block 3 7/16” on head pulleys and 2 15/16” on tail pulleys
• Take-ups: Dodge wide slot

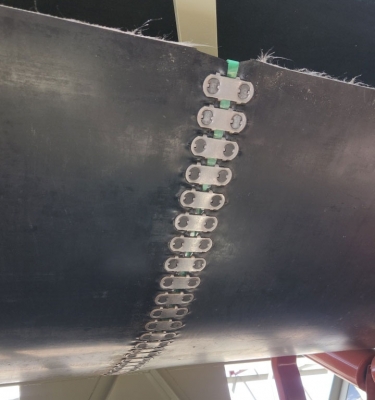

• Conveyor belt: 42” 3ply 3/16” x 1/16”
• 350FPM / 1100TPH
• Belt scraper: By Superior Exterra
• 5’ receiving hopper with extra idlers at load point
• Hitch: Fifth wheel and tow eye (on transport conveyor
• Guarding: Tail pulley and V-belts
