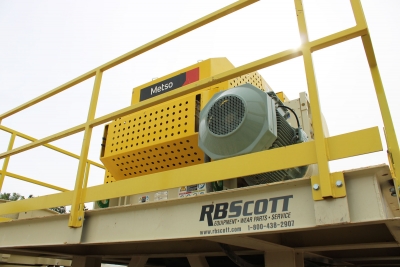

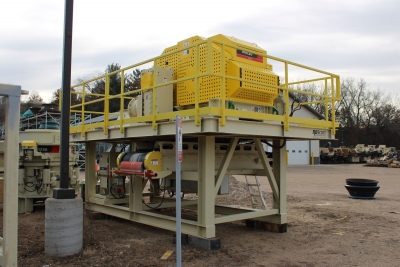

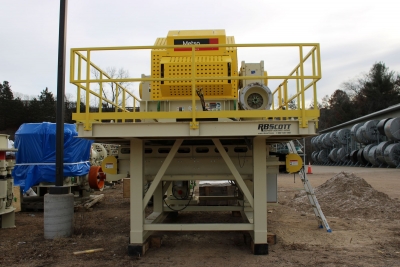

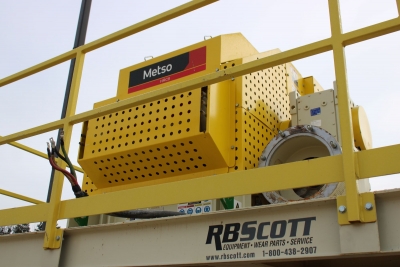

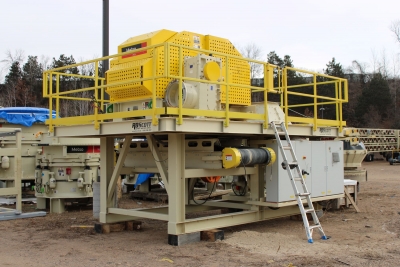

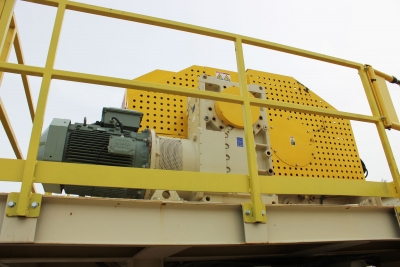

Metso HRC 8 High Pressure Grinding Roll Unit #1382

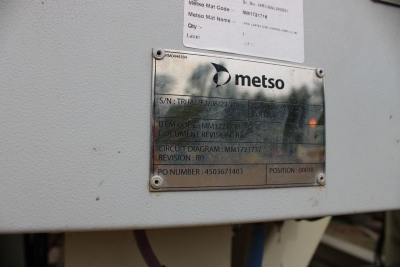

SN: #HRC8ALW0051
Equipment as Follows:
HRC 8 uses a method of inter-particle
comminution by drawing in a bed of material between two
rotating rollers. They compress the feed material between
two rotating rollers, one of which is in a fixed position
and another roller that is floating. The two rotating rollers
generate such a high pressure that it grinds the feed
material to the desired smaller grain size
Main Information
Elevation: 0 to 1000 meters
Ambient temperature: 0 to 40 °C [32 to 104 °F]
Frequency: 60 HZ
Low voltage: 380 V
Control voltage (Supply): 220 VAC
Control voltage (Instruments): 24 VDC
Automation
Automation system: IC80C
UL Certification: Included
Cable kit: 50 m
Metso Outotec Metrics: Included
Roll Assembly
Roll surface: Smooth
Drive Equipment
Motor efficiency: IE3
Variable frequency drive: Air cooled
Optional Equipment
Feed hopper extension: Included
Feed level monitoring: Included
Finishing
Color: Metso beige
Safety labels: ANSI
Language for safety labels: English
Container transportation: Included

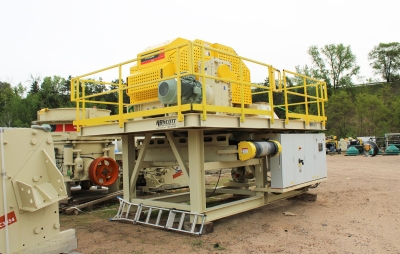

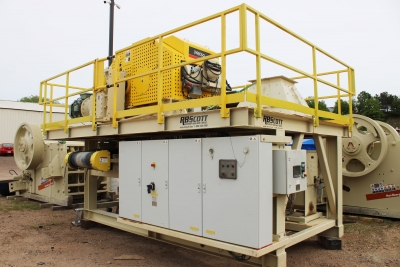

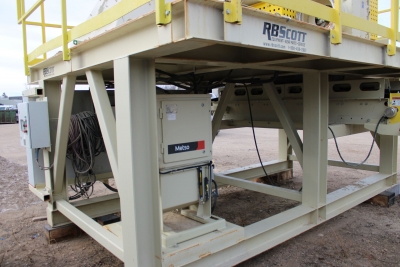

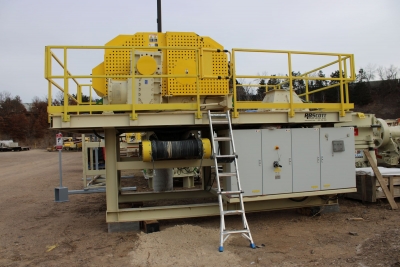

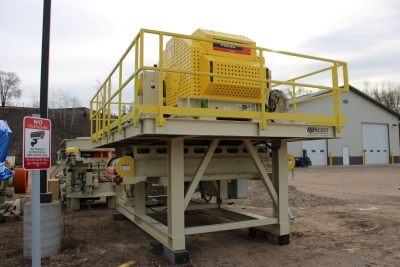

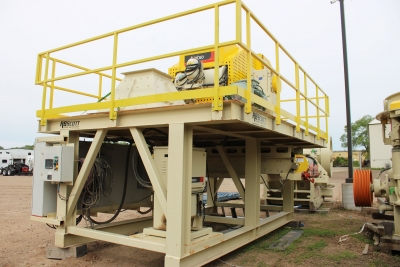

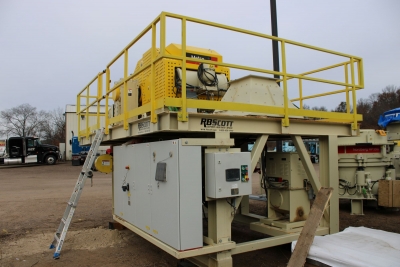

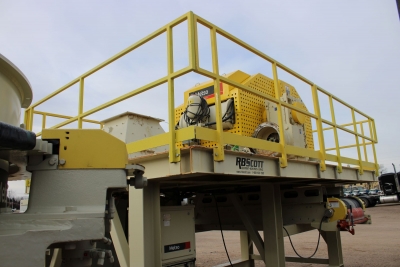

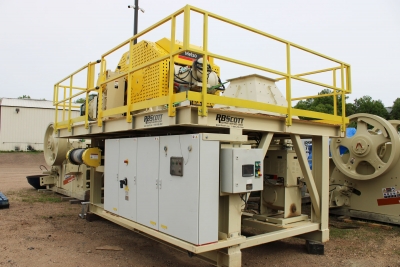

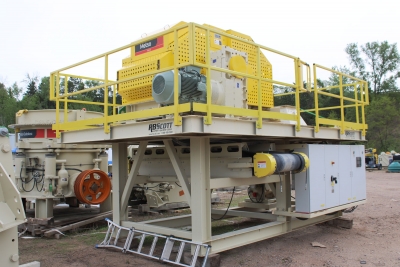

GREYHAWK MODULAR STRUCTURE
- MAIN CHASSIS
- Heavy duty modular structure

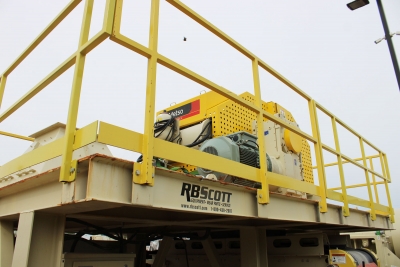

- Large machinery platform with handrails and toe kicks
- Ladder access to machinery platform

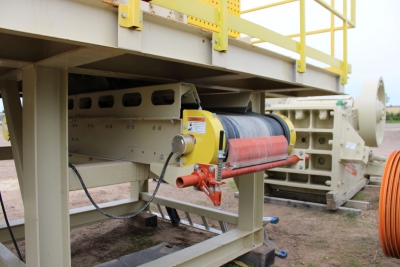

- SIDE DISCHARGE CONVEYOR (30”)
- Channel frame design
- Superior 5” CEMA C channel mount idlers
- Superior 5” CEMA C return idlers
- Superior Exterra belt scraper
- 3 ply, 3/16” top cover conveyor belting
- Full length skirting

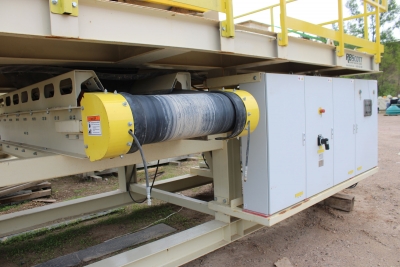

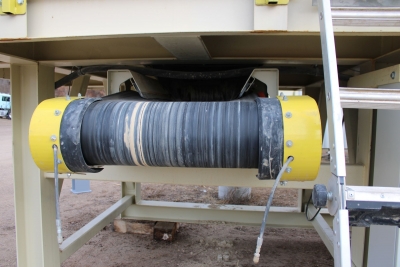

- Head Pulley
- VanDer Graff motorized pulley, 12”
- 10HP
- Tail Pulley
- Superior 12” wing pulley
- XT30 hubs
- 2-7/16” pillow block bearings
- ELECTRICAL
- Supplied by Metso
- Circuit breakers
- Starters
- Discharge Conveyor-10HP/Starter
- Crusher motors-100HP/VFD

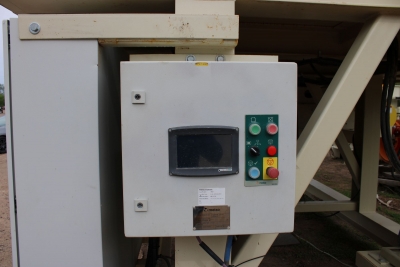

- Metso IC control system
- SAFETY/GUARDING
- We install all standard guarding, customer will be responsible for compliance with local codes.
- GENERAL:
- Paint
- Sandblasted
- Two-part epoxy primer
- Two-part urethane topcoat
- Chassis Color-GH Beige
- Handrail & Guarding Color-GH Orange
- Decals-Orange & grey striping
- (2) sets of owners/parts manuals
