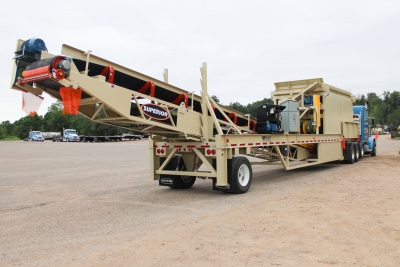

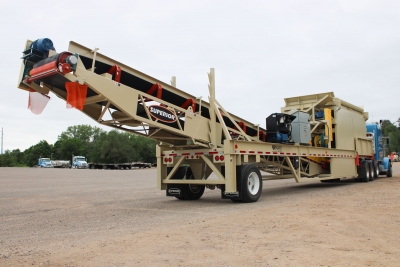

2024 Superior 8x16 Portable Feed Hopper Unit #1383

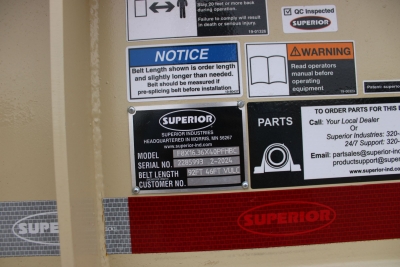

SN: #SN 2285993
Equipment As Follows:
Carrier Chassis
Construction - Heavy duty wide flange beam
Axle - Single, with dual 11x22.5 tires
Landing Legs - Crank-down
Fifth wheel - included
Brakes - complete air brake package
Lights - brake and directional signals
Mud flaps - installed behind transport wheels
Frame Skirting - Sheet metal side guard runs full length of hopper, under trailer frame; front section folds up for transport. BOTH Sides

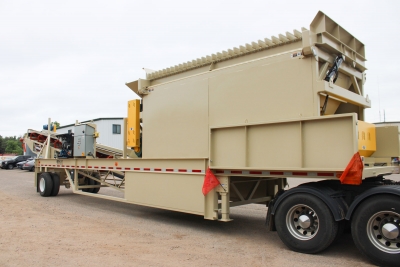

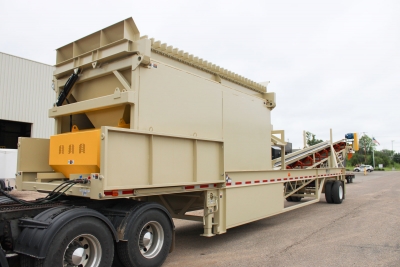

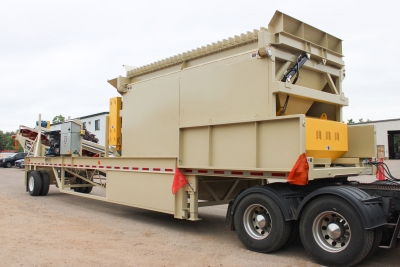

Hopper
Size - 8' x 16' top opening
Construction - fabricated with 1/4" plate, reinforced around top and bottom
Capacity - 10 cubic yards struck
Bottom opening - tapered, with I-beam breaker bar
Hopper Skirting - Sheet metal side guard runs full length of hopper for protection of belt feeder, BOTH Sides
Grizzly
Grizzly - Grizzly Included, dumps to ditch side of plant
Manual or Hydraulic - Grizzly raises and lowers hydraulically, 15hp electric pumping unit, electrical controls
Bar style - Bars are of a triangular construction, 3/4" x 4" flat bars on top with 3/8" x 4" flat side bars, adjustable spacing
Clear Spacing - 4" Spacing between grizzly bars
Self-Relieving - Not Included
Bi-directional - Includes hinge tabs and cylinder tabs to allow grizzly to dump to opposite side of plant. Hydraulic cylinders and hinge pins relocated to the opposite side by user.
Remote Control - Wireless, operates grizzly dump cycle
Belt Feeder
Size - 36" wide x 18' long
Drive - Class I head end
Gear reducer - Dodge shaft mount
Motor - 15 HP
V-belt drive - with drive guard
Capacity - 250-850 STPH of 100 PCF material, 25° surcharge (90% fines, 10% spherical lumps 4” minus)
Belt speed - variable, from 24 to 95 fpm
Superior Idlers - CEMA C, 5” dia. steel rolls, sealed for life ball bearings
Flat carrier - 7" spacing
Returns - steel rolls, on 10' spacing
Belt Scraper - Superior Exterra Primary

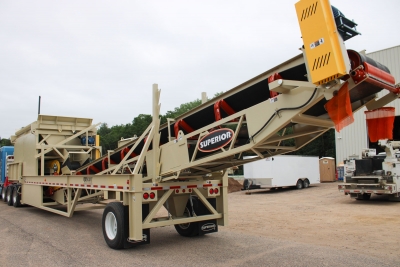

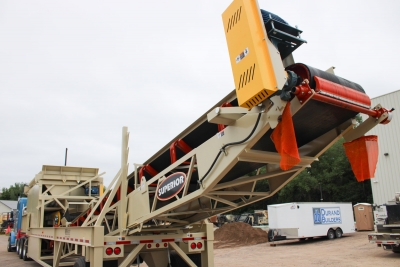

Discharge Conveyor
Size - 36" wide x 40' long
Drive - Class I head end
Gear reducer - Dodge shaft mount
Backstop - installed in reducer
Motor - 20 HP
V-belt drive - with drive guard
Capacity - 850 STPH of 100 PCF material, 25° surcharge (90% fines, 10% lumps 4” minus)
Belt speed - 350 fpm
Superior Idlers - CEMA B, 5” dia. rolls, sealed for life ball bearings
Load Area - 20° trough, 12-16" spacing
Trough - 35° on 4' spacing
Returns - steel rolls, on 10' spacing
Gathering trough - with adjustable rubber flashing
Rock guard - entire length of conveyor
Belt Scraper - Superior Exterra Primary
Conveyor Components
Drive pulley - 14” diameter, 3/8” herringbone lagged drum
Tail pulley - 14” diameter, MD Chevron® pulley
Shafts - Turned and polished
Bearings - Dodge
Take ups - Screw type
Belting - 3-ply 3/16 x 1/16 330 PIW
Belt splice - Flexco mechanical steel fasteners
Electrical
Voltage - 480 v / 3 ph / 60 hz
Electrical - enclosure with main disconnect, circuit breaker, and controller for variable frequency drive
Guarding - for drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.
