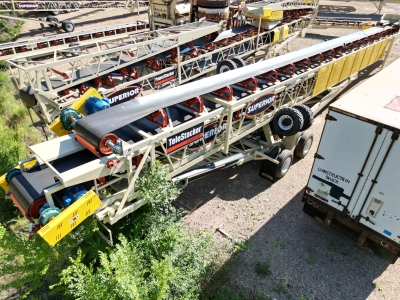

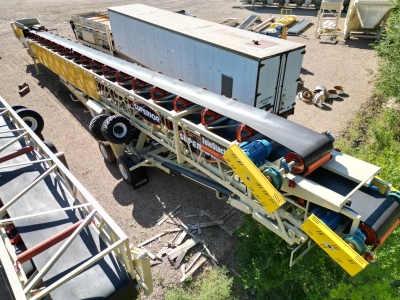

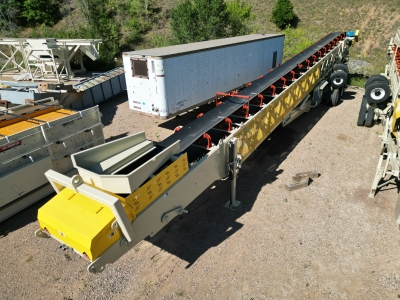

Superior 36x136 Low Profile Telestacker Unit #1400
SN: #SN 2285964
Equipment On Order:Truss design - Heavy-duty truss, designed for maximum strength / weight ratio
Main conveyor - 80' long with 52" deep truss
Stinger conveyor - 66' long with 36" deep truss
Extension - conveyor extends to 136' long with hydraulic cable winch
Safety stop - mechanically stops retraction in the event of cable failure

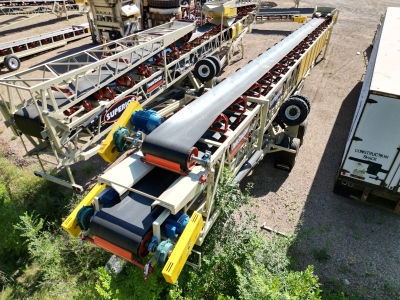

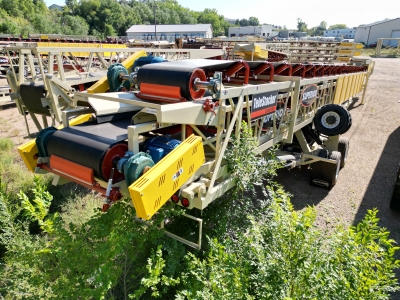

Drive specifications (Main / Stinger)
Drive - Class I head end
Gear reducers - Dodge shaft mount
Backstops - installed in reducers
Motors - 40/(2) 20 HP TEFC
V-belt drive - with drive guard
Capacity - 1000 STPH of 100 PCF material, 25 degree surcharge (90% fines, 10% spherical lumps 7” minus)
Belt speed - 450/600 fpm
Superior pulleys
Drive pulleys - 16” diameter, 3/8” herringbone lagged drum
Tail pulleys - 14” diameter, CEMA Chevron® wing pulley
Shafts - Turned and polished
Bearings - Dodge
Take ups - Screw type
Portability
Undercarriage - Patented FB® Undercarriage, with hydraulic raise cylinders, 15 hp pumping unit, and covers
Axle type - FD 40 axle
Transport axle - (8) 11R-22.5 tires, tandem walking beam. 11’11” travel width.
Axle Jacks - not applicable
Comp. Linkage - slip-joint, for raising and lowering of conveyor with wheels in radial position
Radial axle - (4) 385/65D-19.5 tires on hydraulic outriggers. 18’5” stacking width.
Radial travel - 4-wd, 2 HP planetary drive on each wheel, 4% grade
Fifth wheel - included
Anchor pivot - counter-balanced swing down, secures tail end for radial travel
Brakes - complete air brake package
Lights - brake and directional signals
Mud flaps - installed behind transport wheels
Landing gear - one set, control valve, Honda power unit
Towing eye - fold down, for pit transport
Conveyor Components
Belting - 3 ply, 3/16 x 1/16 330 PIW
Belt splice - Flexco mechanical steel fasteners
Scrapers - Superior Exterra® Primary Belt Scraper, on main and stinger
Superior Idlers - CEMA C, 5” dia. rolls, sealed for life ball bearings
Load area (main) - Superior Seal System, with 10" cartridges and steel rollers
Trough - 35° on 4' spacing
Returns - steel cans, on 8' spacing
Self-aligning - Steel can troughing aligner on main / Superior Navigator® Trainer on stinger

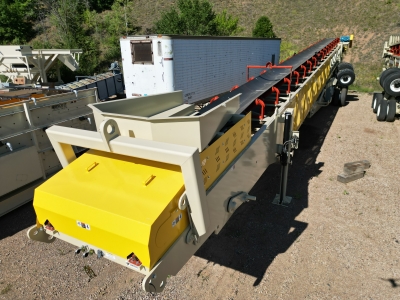

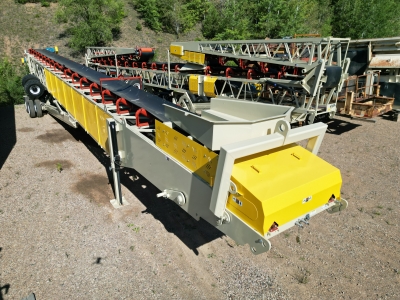

Radial hopper - Rock box style
Gathering trough - 6’ long with adjustable rubber flashing
Spray bars - not included
Controls
Control system - PilePro™ v12 automation - FD axle, power travel, conveyor raise, and stinger extension controlled by PLC parameters or with panel mounted switches, includes auto-level
PanelView™ 1000 - not included
Slide-track - galvanized c-rail and steel wheels to deliver hydraulic hoses and electrical cords to stinger
Matl. flow switch - SonicScout™ ultrasonic sensor, stops power travel when belt is empty
Wireless remote - not included
Zero Speed Sensor - not included
Voltage - 480 v / 3 ph / 60 hz
Electrical - enclosure with main disconnect, circuit breaker, and starters with on/off push buttons to control each electric motor
Additional Specifications
Guarding - for drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.
Paint - 1 coat primer, 1 coat finish enamel
Idler Paint - powder coated Superior Orange
Patents - unit includes patents
Owner’s Manual - (1) copy in English included for operation and maintenance
