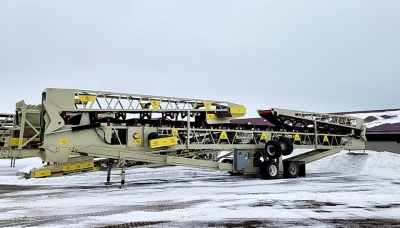

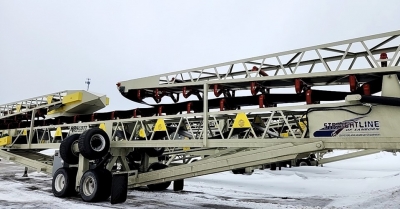

Straightline 36x137 Portable Radial Stacking Conveyor Unit #1346

SN: #SN: 361370523806

Equipment on Order

Equipment As Follows:

Frame: Tail section 4 x 4 x 5/16 chord angles, 2 x 2 x 1/4 angle lattice, Mid & Head section 4 x 4 x ¼ chord angles, 2 x 2 x ¼ angle lattice members with 5 x 3 x 5/16 angle for bottom extra cord
Electrical hydraulic power unit / manual spool valves
Hydra-fold on head and tail section
Hydraulic adjustable height undercarriage
SLI Fold Down series axle
(4) 385/65R-22.5 tires on out rigger
(4) 2hp Planetary drives for radial travel
Tandem Axle with – (8) 11.00R /22.5 tires
Air Brake package and light package
24” x 38” Drive pulley Ceramic lagging – 3 15/16” shaft
20” x 38” Wrap pulley wing – 3 7/16” shaft
16” x 38” Head pulley - 3-7/16” shaft
16” x 38” Tail wing pulley – 3-7/16” shaft
CEMA C – Troughing idlers 5” rollers on 4’ centers
CEMA C - Return idlers 5” rollers on 10’ centers
Gear Reducer: Master PT size 8 with backstop
Motor: 60hp 1800 230/460/3ph Toshiba (single drive only)
Electrical: Switchgear
Bearings: Dodge S2000
Take-ups: SLI screw type
Conveyor belt: 36”- 3 ply 1/4” x 1/16” cover
850 TPH / 350 FPM
Belt Splice: Flexco 140 fasteners
5’ radial receiving hopper with extra idlers at load point
Heavy duty landing gear
Fifth wheel hitch and tow eye
Pivot plate
Belt Cleaner: By Superior
Guarding: Tail pulley and V-belts
Sandblasted: Frame
(1) Coat primer urethane (1) Coat finished urethane

On-Site Start-up, Training and Warranty Commissioning
