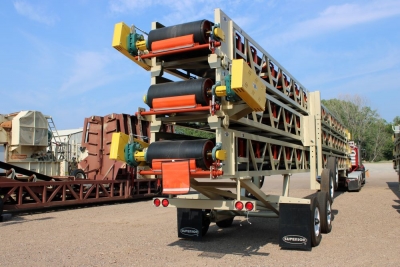

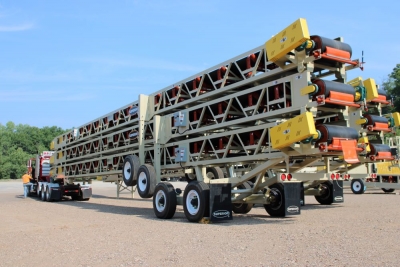

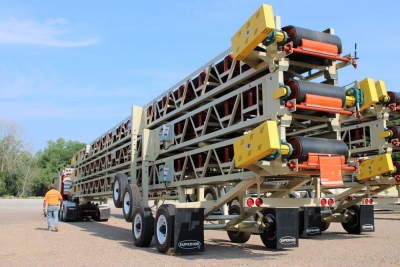

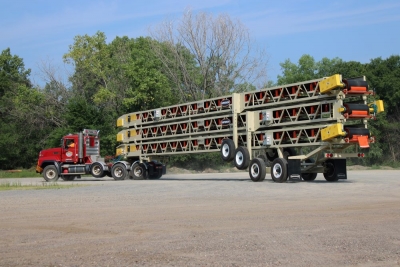

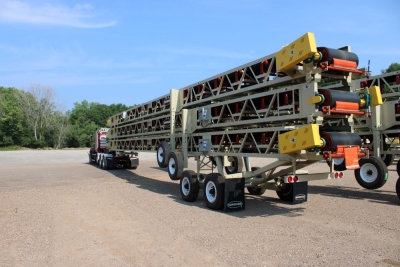

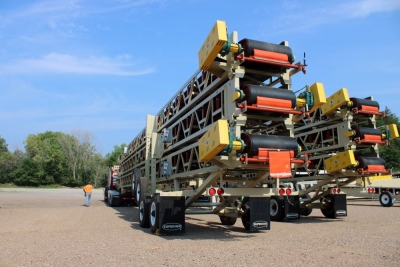

Used Superior 36x70 Slide-Pac System Unit #1340

SN: #SN 2285957, 958, 959

Trailer unit

• Main frame-30" deep truss
• Chord angles-4" x 4" x 5/16"
• Lattice members-2" x 2" x 3/16"

Middle and Top unit

• Main frame-30" deep truss
• Chord angles-4" x 4" x 1/4"
• Lattice members-2" x 2" x 3/16"
• Roller Assembly-single set on head end for easy loading and unloading

Drive specifications

• Drives-Class I head end
• Gear reducers-Dodge shaft mount
• Backstops-not included
• Motors-20 HP 1800 RPM TEFC
• V-belt drive-with drive guard
• Capacity-750 STPH of 100 PCF material, 25 degree surcharge (90% fines, 10% spherical lumps 7” minus)
• Belt speed-350 fpm

Superior pulleys, crown faced

• Drive pulleys-16” diameter, 3/8” herringbone lagged drum
• Tail pulleys-14” diameter, CEMA Chevron® pulley
• Shafts-Turned and polished
• Bearings-Dodge
• Take ups-Screw type

Portability

• Conveyor splice-one piece truss frame
• Towing eye-Pintle type hitch

Trailer unit

• V type axle-7'4" fixed discharge height

-walking beam axle, non-swiveling single 11R-22.5 wheels and tires

• Support legs-adjustable height folding legs
• Fifth wheel-on trailer unit
• Brakes-complete air system
• Lights-brake and directional signals
• Mud flaps-included

Middle unit

• Strut axle-10'6" adjustable discharge height

-non-swiveling single 11-22.5 Ag wheels and tires

Top unit

• Strut axle-12' 3" adjustable discharge height

-non-swiveling single 11-22.5 Ag wheels and tires

• Fold down legs-Fixed height, for top & middle units

Conveyor Components

• Belting -3 ply 3/16 x 1/16 330 PIW
• Belt splice -Flexco mechanical steel fasteners
• Belt scraper-Superior Exterra Primary
• Superior Idlers-CEMA C, 5” dia. rolls, sealed for life ball bearings
• Mounting-recessed inside frame
• Load area-20° trough, 16" spacing
• Trough-35° on 4' spacing
• Returns-steel cans, on 12' spacing
• Skirting extension- 5' long 10" high, hinged, with 1" round bar for material shelf
• Gathering trough -5' long with adjustable rubber flashing

Additional Specifications

• Guarding-for drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.
• Power Supply-480 v / 3 ph / 60 hz
• Electrical-Control panel wired to on board motors, for all (3) units
• Paint-1 coat primer, 1 coat finish enamel Superior Beige/Yellow Guarding
• Idler Paint-powder coated Superior Orange
• Owner’s Manual-(1) copy included for operation, maintenance, and parts
