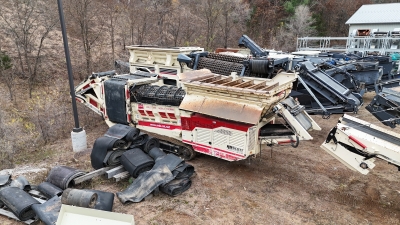

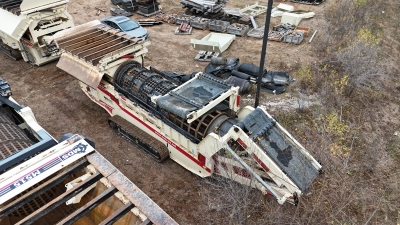

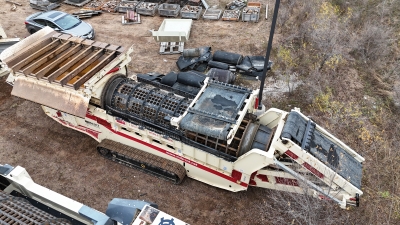

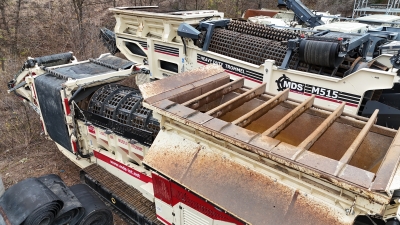

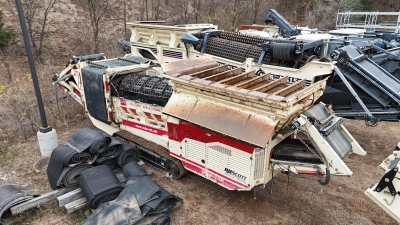

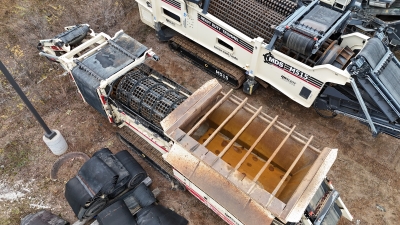

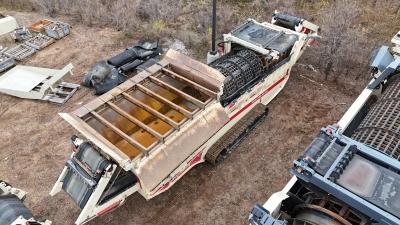

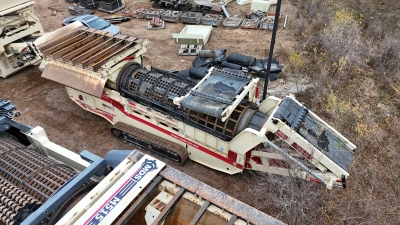

Used MDS M413 Split Track Mounted Trommel Unit #1115
SN: #SN M413032128
ON LEASEM413 with 3 Splits with Changeable Screens
Fines - 4"
Mid-Product - 12"
Output - 250-300 Tonnes per Hour.

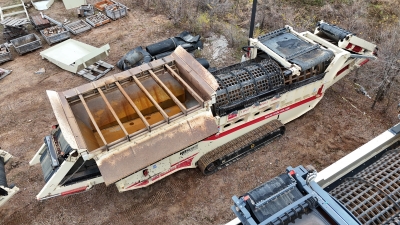

Tipping Grid - 18"
Hopper and Feeder
Feed hopper capacity - 141ft3
Feed Mechanism - Hardox heavy duty steel pan reciprocating push feeder
Plate width - 3' 4"
Speed - 8 Strokes per minute.
Weight & Working Dimensions
Weight - 26.5 Tons
Length - 53’ 5”
Width - 20’ 5”
Height - 9’ 10”

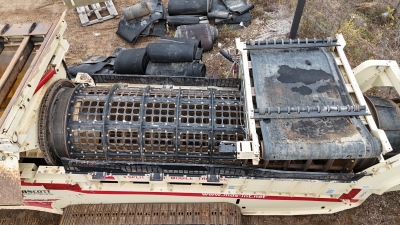

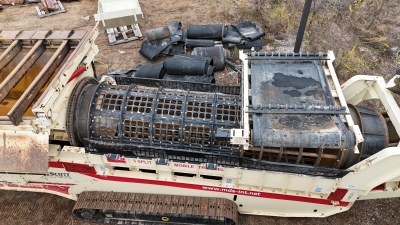

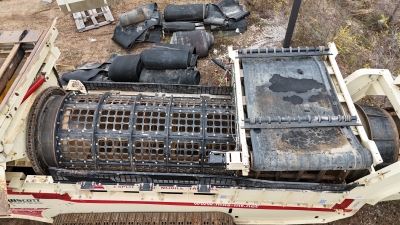

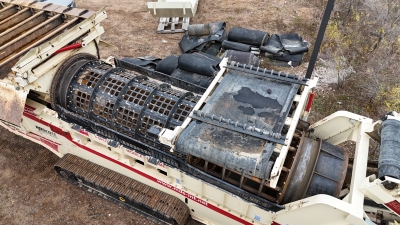

Trommel Drum
Diameter - Internal 4’ 1”
Length - 13’ 1”
Incline angle - 5 degrees
Skeleton Drum – Utilizes bolt in steel screen panels
Screen segments - Manufactured from steel bar and bolted sections.
Mid Product Section - Removeable screen sections to allow customer to change sizes and repair or replace individual sections
Support Rollers - 4 support rollers constructed out of steel, mounted in cradle through spindle.
Support roller paths - Manufactured from high quality steel, welded to the barrel to give uniform solid support, machined face for smooth rolling motion.
Screen Drive - Hydraulic motor with toothed sprocket and chain drive
Drive Base - Fabricated base, mounted into the underframe

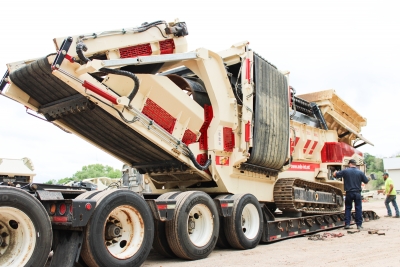

Transport Dimensions
Dimension (L x W x H) - 42' 2" x 8' 2" x 10' 2" (no tipping grid)
Dimension (L x W x H) - 42' 2" x 11' 6.5" x 10' 2" (with tipping grid)
Machine weight without tipping grid - 51,000 LB
Machine weight with tipping grid - 55,350 LB
Conveyors
Fines Conveyor
- 3’ 3” wide
- Heavy-duty belt
- Feeding to the rear of the machine.
- Output height 7’ 3”
- Single hub Hydraulic Drive
Mid Product Conveyor
- 3’ 3” wide
- Heavy-duty belt
- Feeding to the front of the machine.
- Output height 7’ 9”
- Single hub Hydraulic Drive
Oversize Conveyor
- 3’ 3” wide
- Heavy-duty belt
- Feeding to the front of the machine.
- Output height 7’ 8”
Power Unit
Engine - CAT 2.2 67HP Engine
Tanks - Hydraulic and diesel
Cooling - Oil cooler
Engine Control Panel - Electric control panel for engine
Functions - Start/Stop for engine
- Operational controls for drum, feeder, and conveyors
Safety - Limit switches and emergency stops
Protections - Rain proof and ventilated panel
Control Panel
Control Panel - Dust and Weatherproof to IP55
Panel Contents - Ignition key switch, emergency stop, and emergency stop circuit tester. Various control gauges (revs and temperatures)
